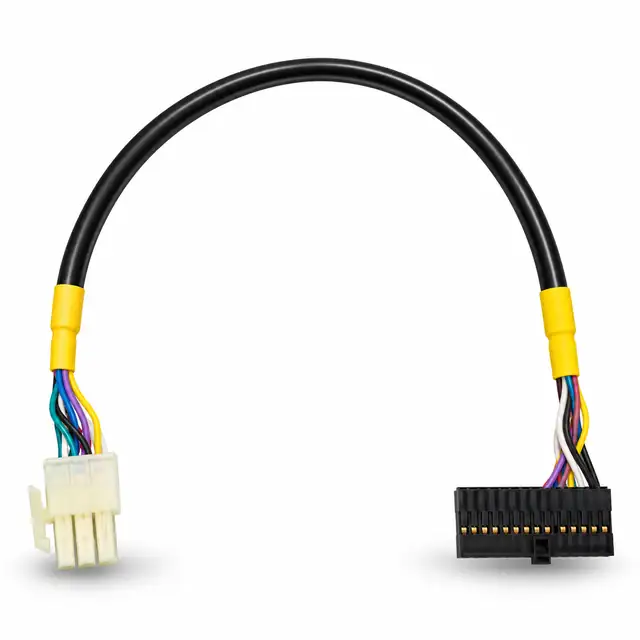

WEL-RM045 ICT Wiring Harness Cable
The WEL-RM045 ICT Wiring Harness Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector,…
| SKU | WEL-RM045 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / WEL-RM045 ICT Wiring Harness Cable
The WEL-RM045 ICT Wiring Harness Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Part no. | WEL-RM045 |
|---|---|
| 1 (connector) | AMP 172340-1 |
| 2 (connector) | BLK-15*2(KEY) |
| Brand | ICT |
| Functions | Power, data communication, enable, inhibit, credit relay connections |
| Interfaces | STD Pulse & ICT Protocol (RS232) |
| Voltage (operating) | 117V AC; catalog voltage listed as 110v |
Works with
- A6E
Good to know
- Wiring assignments include 115VAC hot, 115VAC neutral, neutral enable, neutral inhibit, hot enable, credit relay N.O., and credit relay COM.
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
