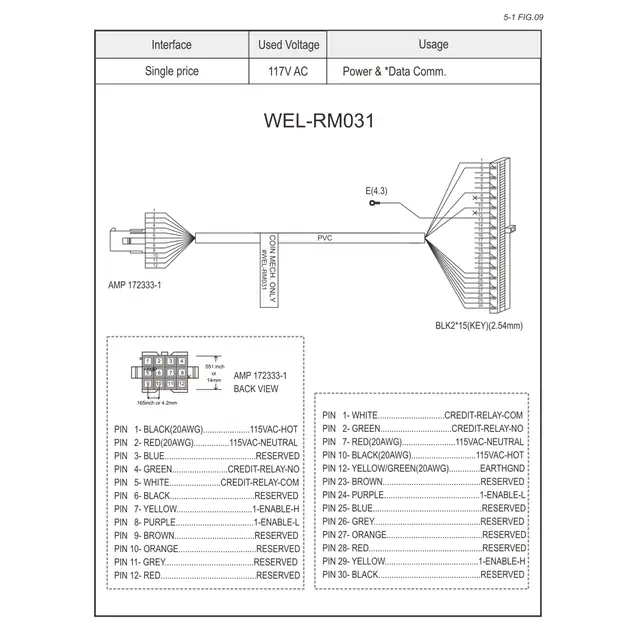

WEL-RM031 ICT Bill Acceptor Wiring Harness
The WEL-RM031 ICT Bill Acceptor Wiring Harness is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the…
| SKU | WEL-RM031 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / WEL-RM031 ICT Bill Acceptor Wiring Harness
The WEL-RM031 ICT Bill Acceptor Wiring Harness is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU (product) | WEL-RM031 |
|---|---|
| 1 (connector) | AMP 172340-1 |
| 2 (connector) | HORN-30 |
| Application | Power & data communication |
| Brand | ICT |
| Interface | 5V Enable |
| Reference (wiring) | WEL-RM017 |
| Voltage (operating) | 117V AC |
| Voltage rating (listed) | 110V |
Good to know
- Available circuit assignments include 115VAC hot, 115VAC neutral, earth ground, ground (GND), I-Enable-L, I-Enable-H, Credit
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
