Thermal Printer Harness for ICT and Pyramid

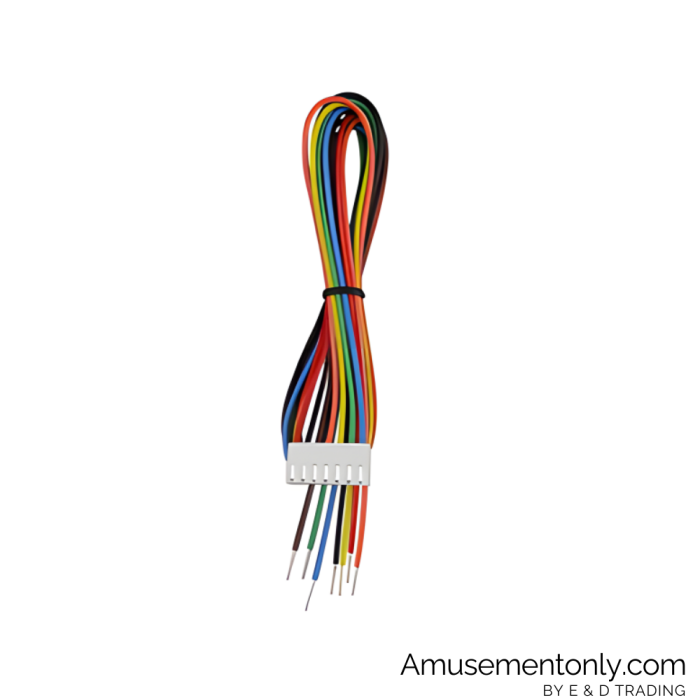

This 7-pin "rainbow" harness connects an ICT GP58CR or Pyramid Phoenix thermal printer to a game. It carries both power and the signals that turn a hopper payout into a printed ticket. The color-coded leads make it easy to land each signal on the right point in a Cherry Master-style or pulse game…
| SKU | THERMAL-PRINTER-HARNESS-FOR-ICT-AND-PYRAMID |
|---|
Call 877-922-6707 to order this item.
Description / Thermal Printer Harness for ICT and Pyramid
This 7-pin "rainbow" harness connects an ICT GP58CR or Pyramid Phoenix thermal printer to a game. It carries both power and the signals that turn a hopper payout into a printed ticket.
Wire colors
| Red | +12V DC |
|---|---|
| Black | GND |
| Brown | Coin In signal |
| Orange | Note In signal |
| Yellow | Payout trigger |
| Green | Ticket out |
| Blue | Error output |
The color-coded leads make it easy to land each signal on the right point in a Cherry Master-style or pulse game harness.
Help from E&D Trading
Not sure it fits your setup? Call 877-922-6707. E&D Trading has more than 30 years of experience with amusement and gaming equipment.
