Pyramid Platinum PT1-LB4-USA Bill Acceptor MDB 24V DC
Vending operators who want Pyramid’s newest validator without rewiring will like the Pyramid Platinum PT1-LB4-USA, a 24V MDB bill acceptor built for round-the-clock duty in vending, kiosk, gaming, amusement and skill game equipment. The PT1-LB4-USA is the MDB member of the family, made for vending…
| SKU | PT1-LB4-USA |
|---|
Description / Pyramid Platinum PT1-LB4-USA Bill Acceptor MDB 24V DC
Vending operators who want Pyramid’s newest validator without rewiring will like the Pyramid Platinum PT1-LB4-USA, a 24V MDB bill acceptor built for round-the-clock duty in vending, kiosk, gaming, amusement and skill game equipment.

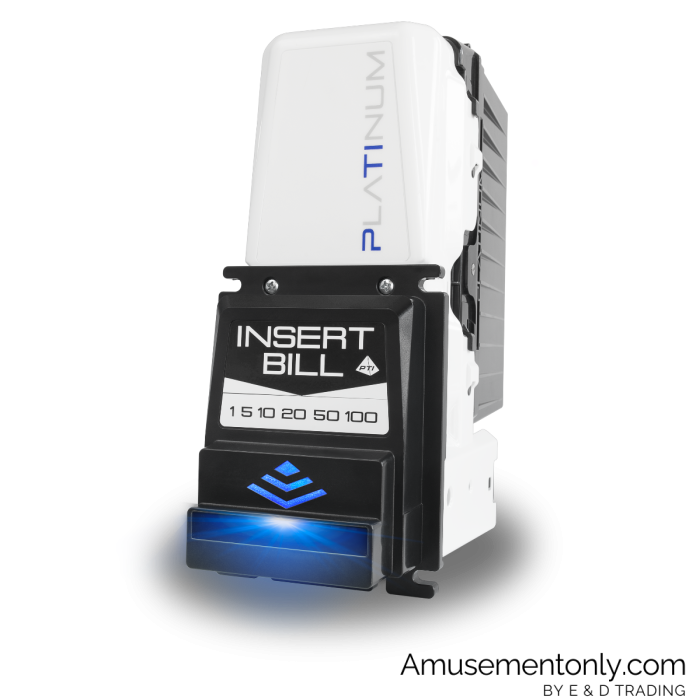

The PT1-LB4-USA is the MDB member of the family, made for vending machines, micro markets and kiosks running on the Multi-Drop Bus standard. Like every Platinum, it takes $1, $5, $10, $20, $50 and $100 bills and drops them into a lockable 500-note cash box that pulls out for collection.
What sets Platinum apart
- No DIP switches or config cards. Load firmware and settings from a USB flash drive or a PC, and they stay put when the power is off.
- Sensors calibrate themselves, so there is no manual calibration step.
- Counterfeit protection comes from UV LED validation, dual-stage optical anti-stringing and a built-in mechanical anti-stringing lever.
- Lit bezel and lit bill entry draw players to the slot.
- The bill path lifts out for cleaning, and diagnostics run from a push-button/LED or a PC.
- Harness pinouts often match other makers' bill acceptors, which helps when you convert a machine.
- Built in the USA with a 2-year parts and labor warranty from Pyramid.
Connection
It speaks the standard bi-directional MDB serial protocol through a standard MDB connector, so it drops onto MDB vending controllers. Pyramid installs MDB harness P/N 05AA0038 at the factory, and a longer harness is available if your cabinet needs the reach.
PT1-LB4-USA specs
| Model | PT1-LB4-USA |
|---|---|
| Series | Pyramid Platinum (PT1) |
| Power | MDB, 24–40 VDC |
| Interface | MDB (Multi-Drop Bus), standard connector |
| MDB pinout | 1: +24 VDC, 2: DC return, 4: Master receive, 5: Master transmit, 6: Comms common |
| Bills accepted | $1, $5, $10, $20, $50 and $100 (USA) |
| Cash box | Lockable and removable, 500 notes |
| Acceptance | Greater than 95%, about 27 bills per minute |
| Operating range | 0–60 °C, up to 90% humidity (non-condensing) |
| Weight | 2.45 lb (1.11 kg) |
| Warranty | 2 years parts and labor from Pyramid |
Decoding the part number
Platinum part numbers read PT1-[cash box type][capacity][power]-[country]. In PT1-LB4-USA, L means a locking cash box, B means 500-note capacity, the final digit (4) is the MDB 24 VDC power option, and USA means U.S. currency.
Getting it set up
Settings live in a configuration file, so tell us what machine it is going into when you order and we can set it up for that game or vending controller. Pyramid offers its free Platinum Acceptor Tools software for changes later on. Browse the rest of the Pyramid Platinum (PT1) line, or call 877-922-6707 for help picking a version.
