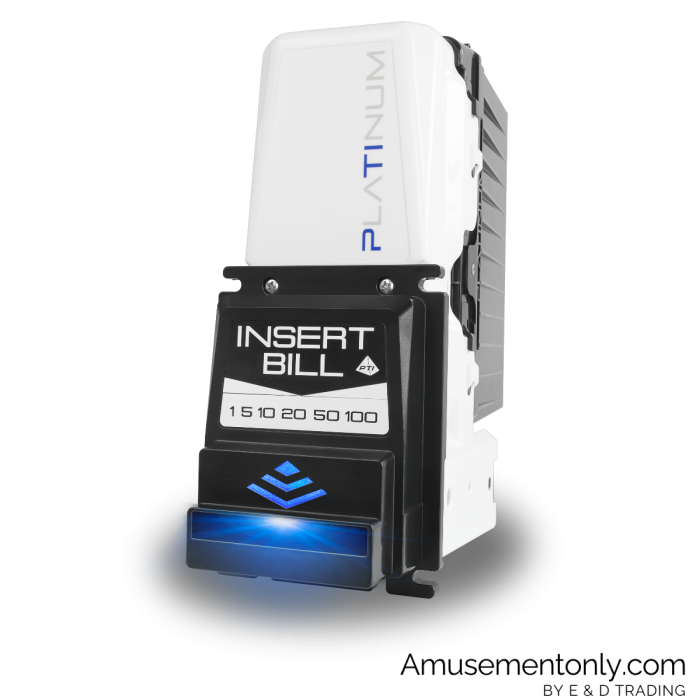

Pyramid Platinum PT1-LB3-USA Bill Acceptor 120V AC
Got an older cabinet with AC power and no DC supply for a validator? The Pyramid Platinum PT1-LB3-USA 120V bill acceptor solves that, and brings Pyramid’s latest bill handling, built for 24/7 duty, to amusement, skill game, kiosk, gaming and vending machines. This version carries its own 120 VAC…
| SKU | PT1-LB3-USA |
|---|
Description / Pyramid Platinum PT1-LB3-USA Bill Acceptor 120V AC
Got an older cabinet with AC power and no DC supply for a validator? The Pyramid Platinum PT1-LB3-USA 120V bill acceptor solves that, and brings Pyramid’s latest bill handling, built for 24/7 duty, to amusement, skill game, kiosk, gaming and vending machines.
This version carries its own 120 VAC power supply, so it runs straight off line voltage in machines that have no 12 VDC to offer. Power and a relay credit output come in on the 9-pin connector, and the optional wall plug harness P/N 05AA0012 lets you power it from a standard outlet. Like every Platinum, it takes $1, $5, $10, $20, $50 and $100 bills and drops them into a lockable 500-note cash box that pulls out for collection.
What sets Platinum apart
- No DIP switches or config cards. Load firmware and settings from a USB flash drive or a PC, and they stay put when the power is off.
- Sensors calibrate themselves, so there is no manual calibration step.
- Counterfeit protection comes from UV LED validation, dual-stage optical anti-stringing and a built-in mechanical anti-stringing lever.
- Lit bezel and lit bill entry draw players to the slot.
- The bill path lifts out for cleaning, and diagnostics run from a push-button/LED or a PC.
- Harness pinouts often match other makers' bill acceptors, which helps when you convert a machine.
- Built in the USA with a 2-year parts and labor warranty from Pyramid.
Connection
Choose standard pulse, always-enabled pulse, Mars-style 600-baud serial, RS-232 through the 18-pin harness, or RS-232 over the rear USB Type-B port. The configuration file sets which one is active, either at the factory or later through Platinum Tools.
PT1-LB3-USA specs
| Model | PT1-LB3-USA |
|---|---|
| Series | Pyramid Platinum (PT1) |
| Power | 120 VAC (9-pin power connector) |
| Credit output | Relay contacts (9-pin) or open-collector output (18-pin, 5–12 VDC, 40 mA max) |
| Interfaces | Pulse, Mars 600-baud serial, RS-232, USB (RS-232 over USB) |
| Bills accepted | $1, $5, $10, $20, $50 and $100 (USA) |
| Cash box | Lockable and removable, 500 notes |
| Acceptance | Greater than 95%, about 27 bills per minute |
| Operating range | 0–60 °C, up to 90% humidity (non-condensing) |
| Weight | 2.45 lb (1.11 kg) |
| Warranty | 2 years parts and labor from Pyramid |
Decoding the part number
Platinum part numbers read PT1-[cash box type][capacity][power]-[country]. In PT1-LB3-USA, L means a locking cash box, B means 500-note capacity, the final digit (3) is the 120 VAC power option, and USA means U.S. currency.
Getting it set up
Settings live in a configuration file, so tell us what machine it is going into when you order and we can set it up for that game or vending controller. Pyramid offers its free Platinum Acceptor Tools software for changes later on. Browse the rest of the Pyramid Platinum (PT1) line, or call 877-922-6707 for help picking a version.
