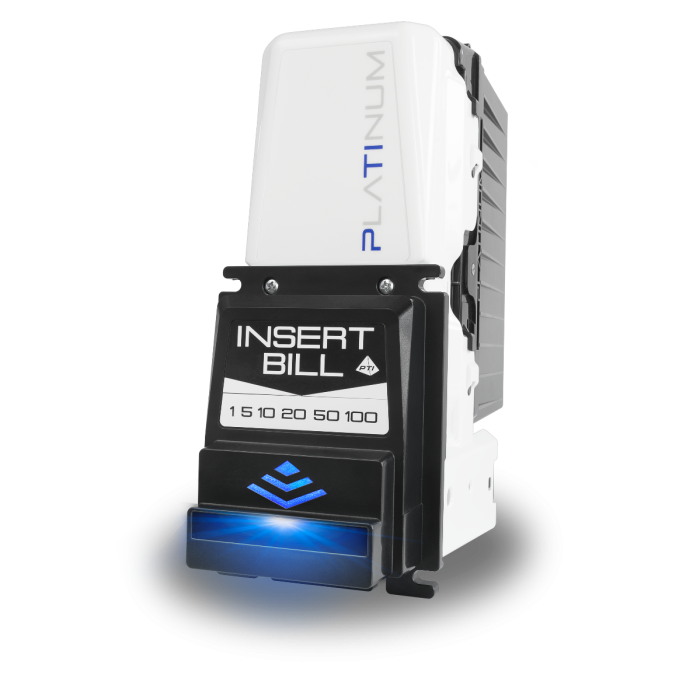

Pyramid Technologies Platinum Bill Acceptor PT1-LB1 – 12V AC
The Pyramid Technologies PT1-LB1 Platinum Bill Acceptor supports new and old U.S. bills from $1 to $100. Built for arcade, 8 Liner, Pot O Gold, and vending machines, it delivers fast validation and high-level security.
$349.00
- SKU
- PT1-LB1
More Information
| Manufacturer | PYRAMID |
|---|---|
| Voltage | 12v DC |
| Bezel type | Standard Bezel |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$100 |
| Bill Recycler | No |
Description / Pyramid Technologies Platinum Bill Acceptor PT1-LB1 – 12V AC
Pyramid Technologies Platinum Bill Acceptor PT1-LB1 – 12V AC
The Pyramid Technologies Platinum Bill Acceptor PT1-LB1 is a reliable and efficient solution for accepting a wide range of U.S. currency bills. Designed for use with various applications like 8 Liner Cherry Master, Pot O Gold, and Arcade-style games, it offers robust security features and user-friendly operation.
Features:
- Bill Compatibility: Accepts new and old $1, $5, $10, $20, $50, and $100 bills.
- 4-Way Acceptance: Ensures convenient and error-free bill insertion.
- Multiple Interfaces: Compatible with 600 Baud Rate Serial, RS-232, MDB, or Pulse interfaces.
- Wide Application Compatibility: Works seamlessly with all 8 Liner Cherry Master, Pot O Gold, and arcade-style games.
- Enhanced Security: Equipped with a new algorithm for high protection against fake and fraudulent bills.
- Flashing Arrows: Illuminated arrows on the bill entry face attract users and guide money insertion.
- Direct Replacement: Serves as a direct replacement for Pyramid APEX 5600 Series.
- Automatic Self-Calibration: No manual calibration is needed, ensuring hassle-free operation.
- Flash Updates: Allows easy firmware updates via PC for continuous improvements.
- Warranty: Backed by a 2-year manufacturer's warranty for peace of mind.
Specifications:
- Acceptance Speed: Processes up to 20 bills per minute.
- Acceptance Rate: 95% or greater, including second-time insertion of rejected bills.
- Anti-Stringing Technology: Dual-stage optical technology prevents fraudulent retrieval of accepted bills.
- Bill Cassette Capacity: Stacks up to 500 notes in an attached cassette.
- Bill Width: Accepts bills up to 72mm wide (approximately 2.83 inches).
- Power Requirements: Operates on 12V DC power.
- Mounting Accessories: Not Including mounting kit
