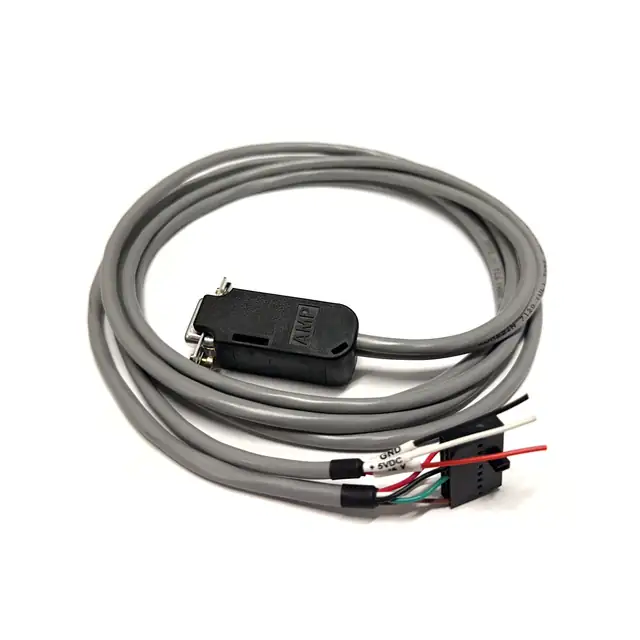

Pyramid Apex/Platinum Serial DB9 Harness, Part No. 05AA0068
Pyramid harness 05AA0068 links a Pyramid Apex or Platinum bill acceptor to a host controller over RS-232. One end plugs into the acceptor and the other ends in a DB9 serial connector, on roughly 6 feet of cable. Order it when your Apex or Platinum acceptor runs on 120VAC and talks RS-232 serial to…
| SKU | 05AA0068 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / Pyramid Apex/Platinum Serial DB9 Harness, Part No. 05AA0068
Pyramid harness 05AA0068 links a Pyramid Apex or Platinum bill acceptor to a host controller over RS-232. One end plugs into the acceptor and the other ends in a DB9 serial connector, on roughly 6 feet of cable.
When you need it
Order it when your Apex or Platinum acceptor runs on 120VAC and talks RS-232 serial to the machine, a kiosk PC or a test bench. Pyramid lists this part in the Platinum manual and in the Apex accessory list. If your acceptor runs on 12V, use the 12V companion harness, Pyramid part 05AA0009.
Specs
| Part number | 05AA0068 |
|---|---|
| Brand | Pyramid Technologies |
| Fits | Pyramid Apex and Platinum bill acceptors |
| Interface | RS-232 serial |
| Host connector | DB9 |
| Length | About 6 ft |
| Acceptor power | 120VAC |
This is the harness only; the bill acceptor is sold separately. It is a different part from the 05AA0023 USB/RS232 PC harness and the 05AA0012 wall-plug harness.
Help from E&D Trading
Not sure which Pyramid harness your machine needs? Call 877-922-6707. We will check the voltage and interface with you before it ships.
