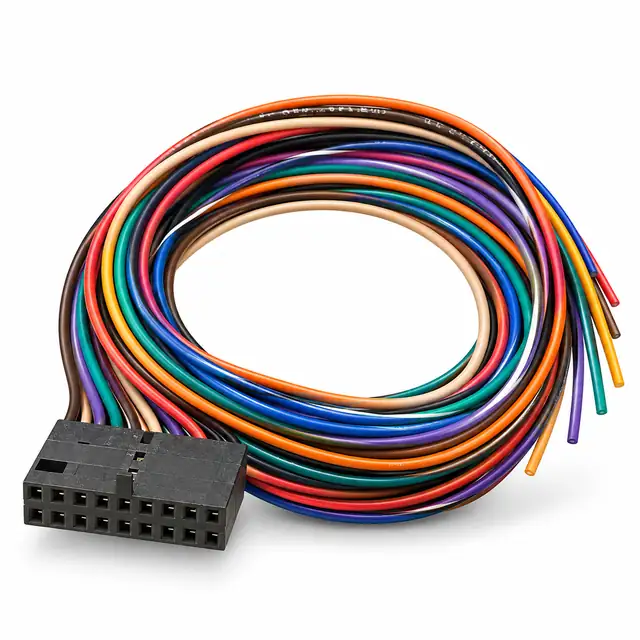

Pyramid Apex 12V Fan-Out Harness, Pyramid Part No. 05AA0029
The Pyramid Apex 12V Fan-Out Harness, Pyramid Part No. 05AA0029 is a Pyramid wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending…
| SKU | 05AA0029 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / Pyramid Apex 12V Fan-Out Harness, Pyramid Part No. 05AA0029
The Pyramid Apex 12V Fan-Out Harness, Pyramid Part No. 05AA0029 is a Pyramid wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Part no. | 05AA0029 (Pyramid Technologies) |
|---|---|
| Acceptors (bill) | 12V DC Pyramid Apex models, such as the 7400-UB1 & 7600-UB1 |
| Connector | 18-position (2×9) connector on the bill acceptor end |
| Power | 12V DC |
Good to know
- 0027
- 05AA0027
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
