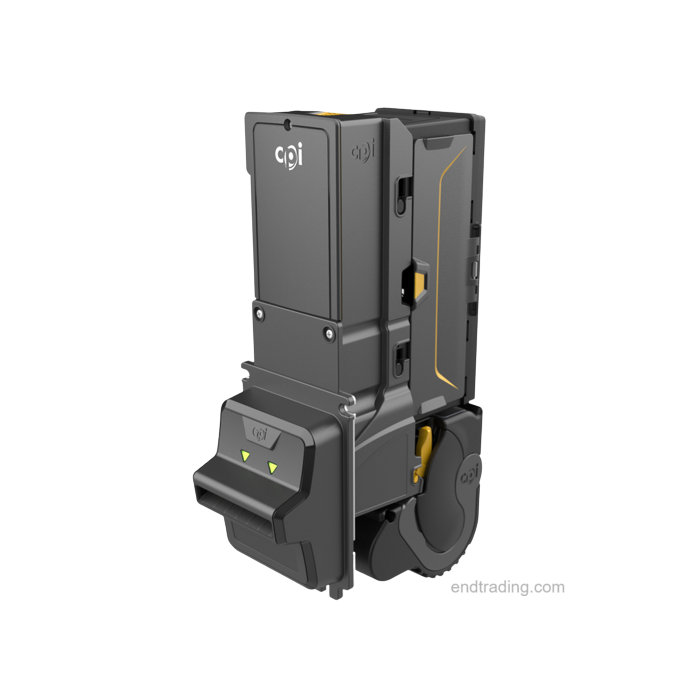

MEI Talos TR7R2-U5MUS Bill Validator W/Recycler
- SKU
- TR7R2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | Crane Media Vendor "R" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | Yes |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos TR7R2-U5MUS Bill Validator W/Recycler
Overview
The MEI Talos TR7R2-U5MUS is a U.S.-currency MDB bill validator with integrated recycler designed for redemption kiosks, amusement, and self-service payment systems. As part of Crane MEI’s advanced Talos Recycler (TR) Series, it replaces the discontinued VN27R2-U5MUS and delivers rapid note validation, secure recycling, and long-term operational stability.
The R-Bezel (Front-Load Recycler Bezel) allows easy front access for note insertion and collection, ideal for cabinets or kiosks where accessibility and security are critical. The TR7R2-U5MUS supports dual-denomination recycling (typically $1 and $5), helping reduce coin handling and improving payout efficiency.
Key Features
- Accepts and recycles U.S. $1–$20 notes (dual-denomination payout)
- MDB interface for vending, kiosk, and amusement systems
- Replaces legacy VN27R2-U5MUS
- Front-load R-Bezel design for kiosk and cabinet use
- Integrated recycler with removable dual cassette design
- Enhanced optical counterfeit detection and anti-stringing
- Field-upgradeable firmware via USB or handheld programmer
- Durable gear-driven mechanism for extended life in high-use environments
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | R-Bezel (Front-Load Recycler Bezel) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (up-stacker configuration) |
| Recycling Denominations | Typically $1 and $5 bills |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| TR | Talos Recycler | Indicates Talos model with integrated recycler module for payout capability. |
| 7 | Model Family | T7 Series — direct successor to the VN27xx validator and recycler family. |
| R | Bezel Type | R-Bezel (Front-Load Recycler Bezel) — designed for kiosks and redemption cabinets requiring secure front access. |
| 2 | Interface Type | MDB protocol for vending and amusement systems. |
| U5 | Stacker Configuration | Up-stacker design with 500-note stacker box and integrated recycler mechanism. |
| MUS | Build Code | Standard U.S. factory build with MDB firmware and recycler control board. |
Summary:
The MEI Talos TR7R2-U5MUS replaces the VN27R2-U5MUS, combining Crane MEI’s proven validation technology with integrated bill recycling for faster payouts, improved security, and reduced coin dependency in MDB kiosks and amusement systems.
