MEI Talos T811-U5EUS Amusement Bill Acceptor
- SKU
- T811-U5EUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 110v AC |

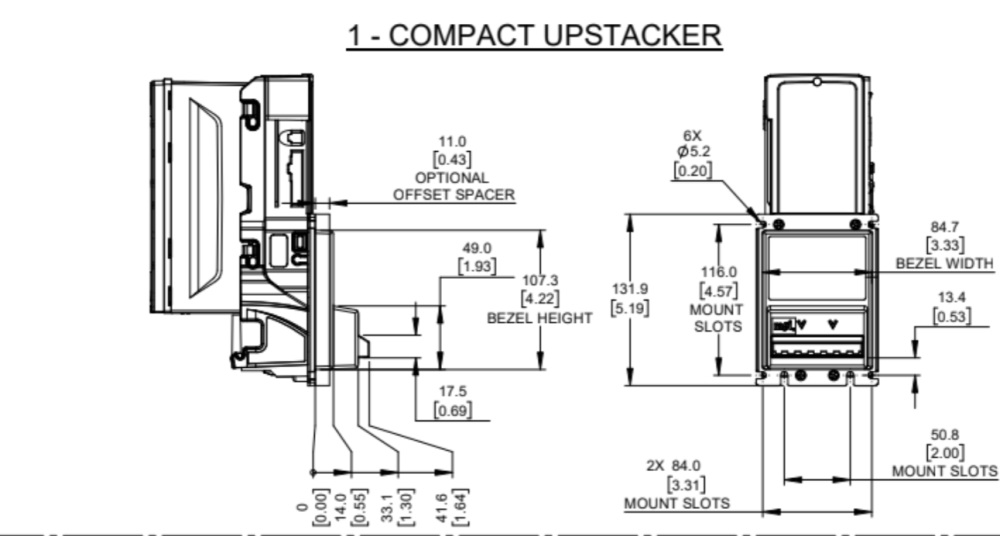

| Bezel type | Compact (Up stacker) "1" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Bill Recycler | No |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T811-U5EUS Amusement Bill Acceptor
The MEI Talos T811-U5EUS is a U.S.-currency 110 V AC bill validator built for legacy vending and amusement applications. As part of the Crane MEI Talos T8 Series, it replaces the discontinued AE2811-U5EUS and delivers faster bill acceptance, enhanced counterfeit protection, and simplified service through Crane’s Talos modular design.
Featuring a compact up-stacker body and operating on 110 V AC, the T811-U5EUS offers drop-in compatibility for legacy AE28xx systems while providing Crane’s latest optical sensor technology and mechanical durability for high-duty vending and amusement use.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- 110 V AC pulse/parallel interface for legacy systems
- Replaces legacy AE2811-U5EUS
- Compact up-stacker body for tight cabinet installations
- Advanced anti-counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker cassette for tool-free service
- Durable gear-driven transport system for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | 110 V AC Pulse / Parallel / Legacy Interface |
| Stacker Orientation | Upward (Up-Stacker) |
| Stacker Capacity | Up to 500 notes (interchangeable cassette) |
| Operating Voltage | 110 V AC ± 10% |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s latest-generation validator platform with enhanced optics and serviceability. |
| 8 | Model Family | T8 Series — replaces discontinued AE28xx validators. |
| 1 | Bezel Type | Standard Talos Entry bezel for universal front-entry installation. |
| 1 | Power Configuration | 110 V AC input for legacy systems (not MDB 24 V DC). |
| U | Stacker Orientation | Up-Stacker — bills stack upward into the cassette. |
| 5 | Stacker Capacity | 500-note stacker cassette for compact installations. |
| EUS | Build Code | U.S. standard E-series mainboard configuration with Talos firmware. |
Summary:
The MEI Talos T811-U5EUS replaces the AE2811-U5EUS, featuring a compact up-stacker design, 500-note cassette, and 110 V AC operation for legacy vending and amusement applications.
