MEI Talos T7R2-U5MUS Vending Bill Acceptor
- SKU
- T7R2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | Crane Media Vendor "R" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | Yes |

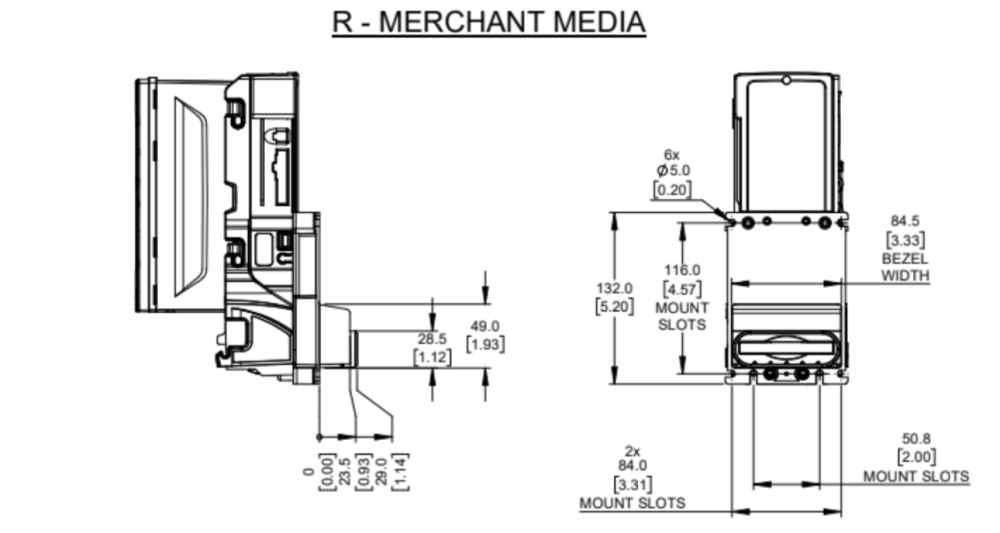

| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T7R2-U5MUS Vending Bill Acceptor
Overview
The MEI Talos T7R2-U5MUS is a U.S.-currency MDB bill validator engineered for vending, amusement, kiosk, and redemption systems. As part of the Crane MEI Talos T7 Series, it replaces the discontinued VN27R2-U5MUS model and introduces faster validation, improved security, and a modular design that supports future recycler upgrades.
Featuring the R-Bezel (Recycler-Ready Front-Load Bezel), this validator is built for systems where note payout or recycling may be added later. The T7R2-U5MUS combines advanced optical sensors, rugged construction, and field-upgradeable firmware to deliver exceptional reliability and simplified service in demanding applications.
Key Features
- Accepts U.S. $1–$20 bills with fast, multi-directional validation
- MDB interface for vending, kiosk, and amusement systems
- Replaces legacy VN27R2-U5MUS
- R-Bezel (Recycler-Ready Front Entry) for future recycler integration
- Enhanced counterfeit and stringing protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release 500-note up-stacker for easy maintenance
- Durable gear-driven transport for extended operational life
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | R-Bezel (Recycler-Ready Front-Load) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s newest validator platform with modular design and enhanced optics. |
| 7 | Model Family | T7 Series — replacement for the discontinued VN27xx family. |
| R | Bezel Type | R-Bezel (Recycler-Ready Front Entry) — supports future recycler module integration. |
| 2 | Power Configuration | MDB communication protocol for vending and kiosk applications. |
| U5 | Stacker Configuration | Up-stacker design with 500-note capacity stacker box. |
| MUS | Build Code | Standard U.S. build with MDB firmware and Talos mainboard electronics. |
Summary:
The MEI Talos T7R2-U5MUS replaces the VN27R2-U5MUS, providing Crane MEI’s fastest bill validation, improved durability, and recycler-ready design for modern MDB vending and amusement systems.
