MEI Talos T7P2-U5MUS Vending Bill Acceptor
- SKU
- T7P2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |

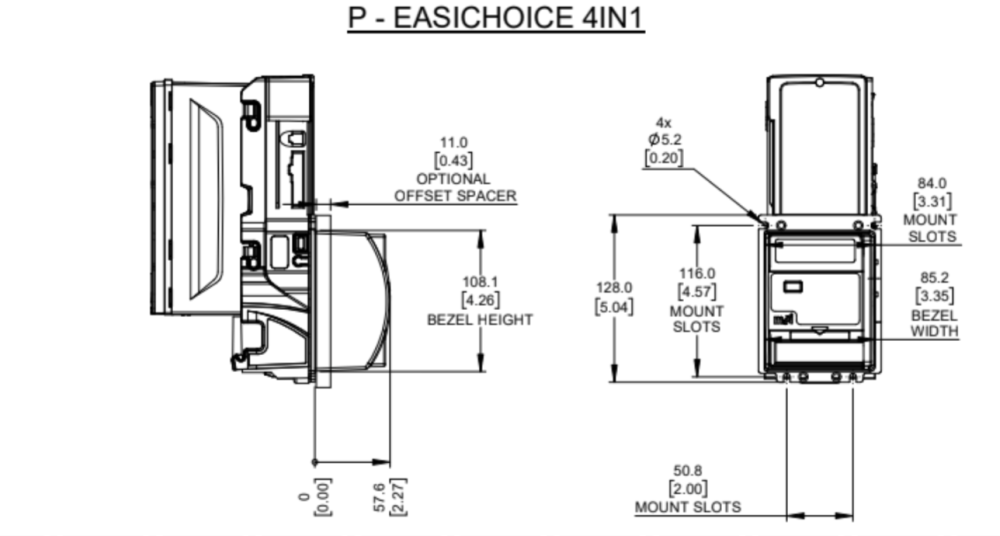

| Bezel type | Easi-Choice 4in1 |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T7P2-U5MUS Vending Bill Acceptor
Overview
The MEI Talos T7P2-U5MUS is a U.S.-currency MDB bill validator from the Crane MEI Talos T7 Series, replacing the discontinued VN27P2-U5MUS. It delivers faster bill acceptance, improved counterfeit detection, and modular serviceability through Crane’s advanced Talos architecture.
Equipped with the P-Bezel (Profile) and an up-stacker configuration, this validator is purpose-built for vending and kiosk applications. Operating on 24 V DC / 34 V DC MDB power, it provides a compact footprint, sleek front-panel profile, and dependable performance under heavy daily use.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- MDB communication protocol (24 V DC / 34 V DC)
- Replaces legacy VN27P2-U5MUS
- P-Bezel (Profile) for modern vending and kiosk installations
- Up-stacker cassette for easy bill removal and service access
- Advanced anti-counterfeit and anti-stringing protection
- Field-upgradeable firmware via USB or handheld programmer
- Rugged gear-driven transport and modular construction for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | P-Bezel (Profile Bezel for Vending and Kiosk Applications) |
| Stacker Orientation | Upward (Up-Stacker) |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | Up to 500 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s latest validator platform with enhanced optics and modular servicing. |
| 7 | Model Family | T7 Series — direct replacement for VN27xx validators. |
| P | Bezel Type | Profile Bezel — flush mount bezel designed for vending and kiosk applications. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB input for modern vending and amusement systems. |
| U5 | Stacker / Capacity | Up-Stacker with 500-note cassette for compact installations. |
| MUS | Build Code | U.S. MDB build (M-series mainboard) with Talos firmware. |
Summary:
The MEI Talos T7P2-U5MUS replaces the VN27P2-U5MUS, featuring a Profile P-Bezel, up-stacker design, and 24 V DC MDB operation for modern vending and kiosk applications.
