MEI Talos T7D2-U5MUS Vending Bill Acceptor
- SKU
- T7D2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | High Visibility (Compact) "D" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |

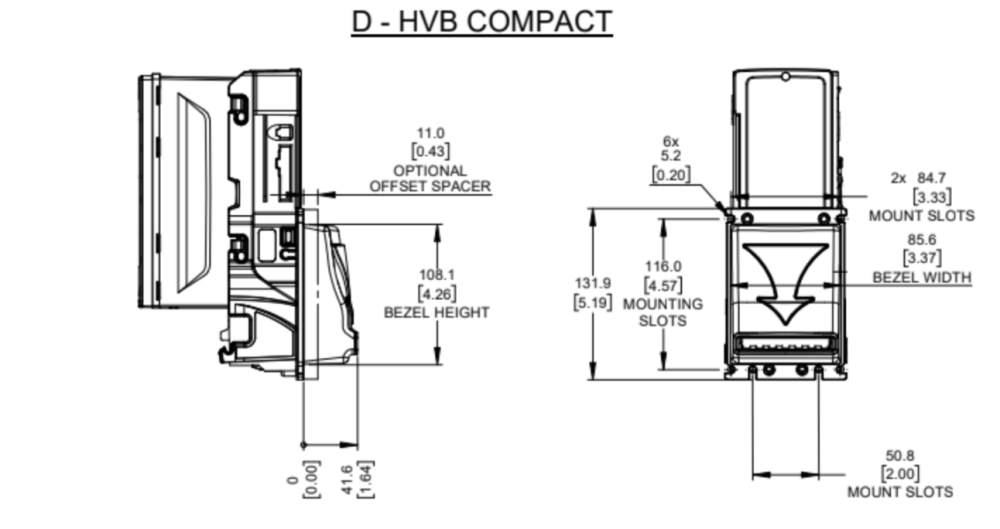

| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T7D2-U5MUS Vending Bill Acceptor
Overview
The MEI Talos T7D2-U5MUS is a U.S.-currency MDB bill validator designed for vending, amusement, and kiosk systems that require a compact, high-visibility front-entry bezel. As part of the Talos T7 Series, it replaces the discontinued VN27D2-U5MUS model—bringing faster acceptance, stronger counterfeit detection, and simplified field service.
The D-Bezel design provides a compact and illuminated entry point ideal for tight cabinet spaces while maintaining full MDB compatibility. Built with MEI’s latest Talos platform, the T7D2-U5MUS offers superior note handling, optical precision, and service life compared to previous VN27xx validators.
Key Features
- Accepts U.S. $1–$20 notes with advanced optical validation
- MDB interface for vending, kiosk, and amusement machines
- High-Visibility Compact D-Bezel with LED illumination
- Replaces legacy VN27D2-U5MUS
- Enhanced anti-stringing and anti-fraud protection
- Quick-release stacker and modular construction
- Field-upgradable firmware via USB or handheld programmer
- Durable gear-driven mechanism for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | D-Bezel (High-Visibility Compact Bezel) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 Notes (interchangeable) |
| Bill Insertion | 4-way acceptance (all orientations) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Newest generation of MEI validators featuring advanced optics, gear-driven transport, and modular design. |
| 7 | Model Family | Indicates replacement for the discontinued VN27xx series validators. |
| D | Bezel Type | High-Visibility Compact Bezel with LED illumination for tight mounting spaces and enhanced visibility. |
| 2 | Power Configuration | MDB protocol for vending and amusement systems. |
| U5 | Currency Configuration | U.S. Dollar (USD) — accepts $1, $5, $10, and $20 notes. |
| MUS | Build Code | U.S. standard mainboard and factory MDB configuration. |
Summary:
The MEI Talos T7D2-U5MUS replaces the older VN27D2-U5MUS, offering a high-visibility D-Bezel for compact installations, faster note acceptance, and enhanced reliability across MDB-based vending and amusement systems.
