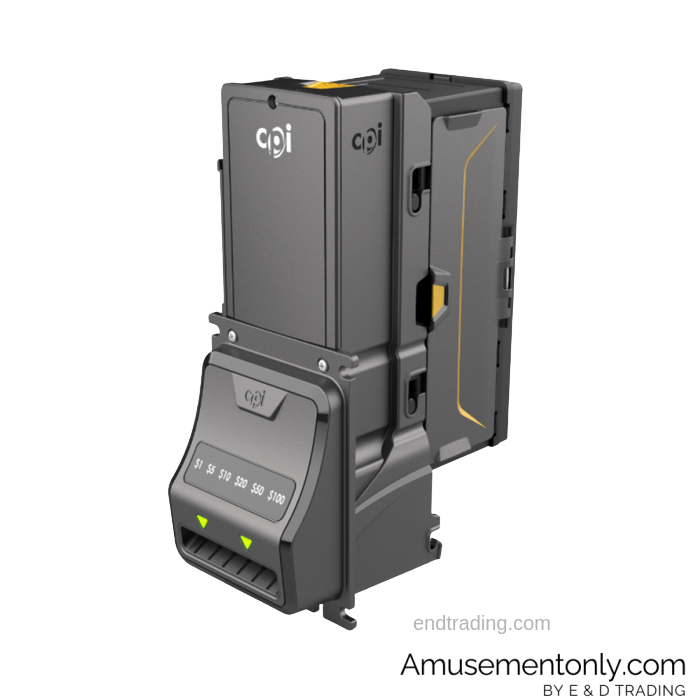

MEI Talos T702-U7MUS Vending Bill Acceptor
- SKU
- T702-U7MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | VFM (Up stacker) "0" |
| Cashbox Size | 700 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |

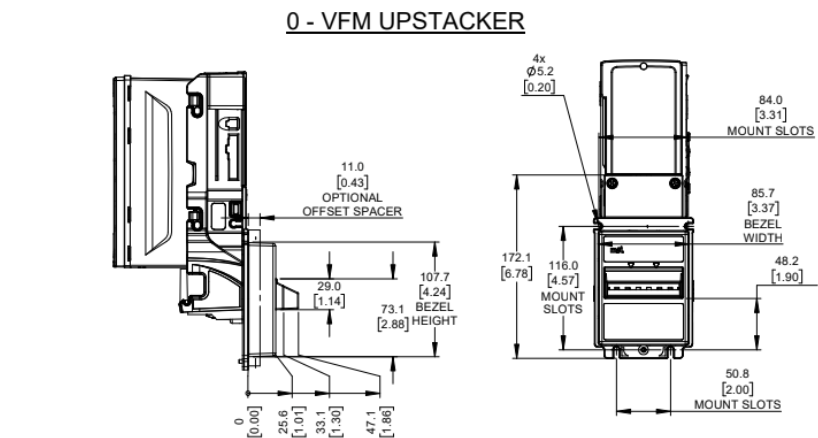

| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T702-U7MUS Vending Bill Acceptor
Overview
The MEI Talos T702-U7MUS is a U.S.-currency MDB bill validator engineered for vending, amusement, and kiosk applications. As part of Crane MEI’s Talos T7 Series, it replaces the discontinued VN2702-U7MUS and offers high-speed validation, advanced counterfeit detection, and service-friendly modular design.
Built on Crane MEI’s latest Talos platform, the T702-U7MUS uses enhanced optical sensors, gear-driven transport, and a high-capacity up-stacker magazine. Its backward bezel compatibility with VN27xx units makes it an ideal drop-in upgrade for legacy vending and amusement machines.
Key Features
- Accepts U.S. $1-$20 bills with ultra-fast validation
- MDB interface for vending, kiosk, and amusement machine systems
- Replaces legacy VN2702-U7MUS
- Standard Talos bezel for quick retrofit into existing machines
- Advanced authentication with anti-stringing and optical counterfeit detection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release 700-note up-stacker for extended capacity
- Robust gear-driven transport design for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 700 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s next-generation validator platform featuring advanced optics and modular servicing. |
| 7 | Model Family | T7 Series — successor to the VN27xx legacy validators. |
| 0 | Design Variant | Standard Talos design for vending and amusement machine applications. |
| 2 | Interface Type | MDB communication protocol — standard for modern vending and kiosk systems. |
| U7 | Stacker Configuration | Up-stacker design with 700-note capacity stacker box. |
| MUS | Build Code | Standard U.S. build with MDB firmware and Talos mainboard electronics. |
Summary:
The MEI Talos T702-U7MUS replaces the VN2702-U7MUS, providing Crane MEI’s fastest bill validation technology, enhanced optical counterfeit detection, and a high-capacity 700-note up-stacker configuration for vending and amusement systems.
