MEI Talos T6T1-U7EUS Amusement Bill Acceptor
- SKU
- T6T1-U7EUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 110v AC |
| Bezel type | Talos Upstacker low-entry "T" |
| Cashbox Size | 700 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |

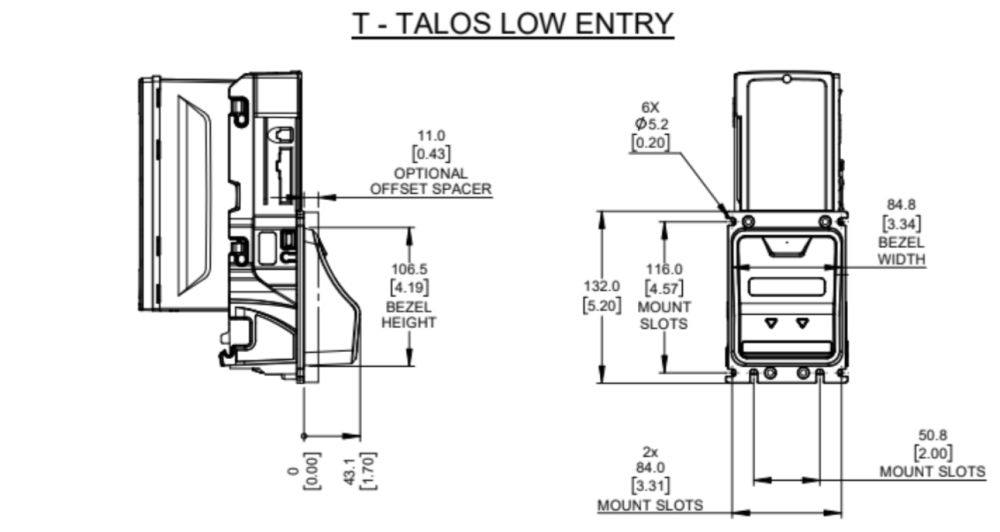

| Bezel Specs |
|

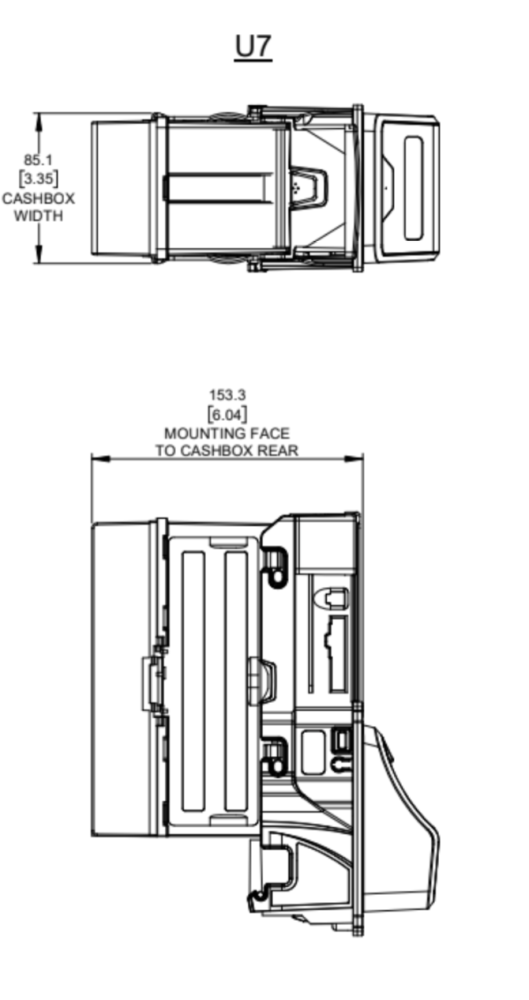

| Cashbox Specs |
|
Description / MEI Talos T6T1-U7EUS Amusement Bill Acceptor
Overview
The MEI Talos T6T1-U7EUS is a U.S.-currency 110 V AC bill validator built for amusement, kiosk, and vending applications requiring AC-powered operation. As part of the Crane MEI Talos T6 Series, it replaces the discontinued AE2610-U7EUS and offers faster note acceptance, advanced optical sensing, and easier field maintenance.
Equipped with the Talos Low-Entry T-Bezel and an up-stacker configuration, this validator is ideal for installations where cabinet depth is limited but AC operation is required. The T6T1-U7EUS combines precision bill validation, rugged mechanical design, and modular servicing to ensure long-lasting, dependable performance in the field.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- 110 V AC operation for legacy vending and amusement systems
- Replaces legacy AE2610-U7EUS
- T-Bezel (Low-Entry Up-Stacker) for compact mounting
- Enhanced counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release up-stacker cassette for tool-free service
- Durable gear-driven transport system for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | 110 V AC Pulse / Parallel / Legacy Interface |
| Bezel Type | Talos Low-Entry T-Bezel (Up-Stacker) |
| Stacker Orientation | Upward |
| Operating Voltage | 110 V AC ±10% |
| Stacker Capacity | Up to 700 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s modern validator platform with modular design and enhanced optics. |
| 6 | Model Family | T6 Series — direct replacement for AE26xx validators. |
| T | Bezel / Configuration | Talos Low-Entry T-Bezel — compact up-stacker design for vending and amusement cabinets. |
| 1 | Power Configuration | 110 V AC input — for legacy systems not using MDB 24 V DC interface. |
| U7 | Currency Configuration | U.S. Dollar (USD) — supports $1, $5, $10, and $20 denominations. |
| EUS | Build Code | U.S. standard E-series mainboard build with Talos firmware. |
Summary:
The MEI Talos T6T1-U7EUS replaces the AE2610-U7EUS, featuring a Talos Low-Entry T-Bezel, up-stacker design, and 110 V AC operation for legacy vending and amusement applications.
AmusementOnly.com is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
