MEI Talos T6S2-U5MUS Amusement Bill Acceptor
- SKU
- T6S2-U5MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |
| Bezel type | Talos Upstacker mid-entry "S" |
| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T6S2-U5MUS Amusement Bill Acceptor
Overview
The MEI Talos T6S2-U5MUS is a U.S.-currency MDB bill validator from the Crane MEI Talos T6 Series, built for modern vending, kiosk, and amusement machines. It replaces the legacy AE26S2-U5MUS and offers faster bill recognition, improved optical accuracy, and Crane’s modular service architecture for easy field support.

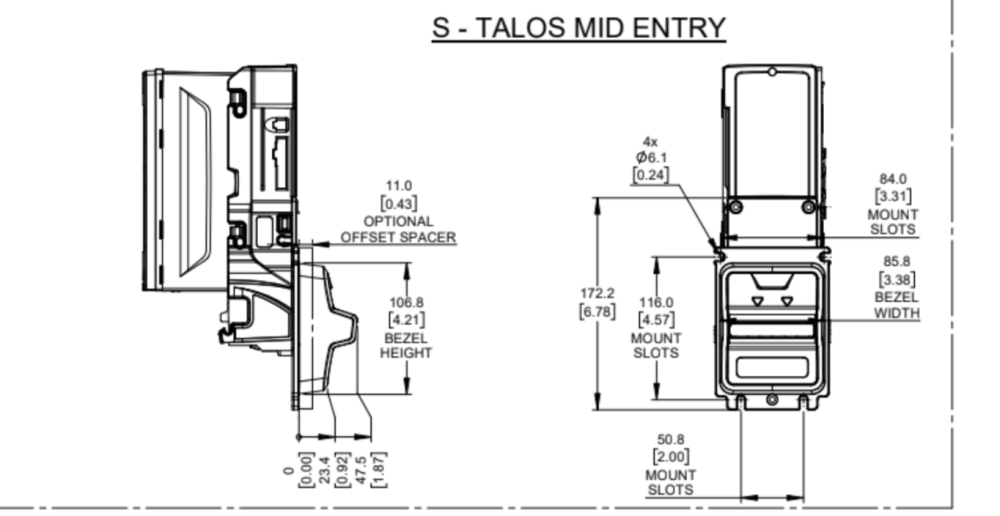

Equipped with the S-Bezel (Talos Mid-Entry), this model guides bills through a mid-level acceptance path ideal for machines with flush door mounting. Operating on 24 V DC / 34 V DC MDB power, the T6S2-U5MUS features an Up-Stacker cassette for efficient bill storage and easy maintenance.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- MDB communication protocol (24 V DC / 34 V DC)
- Replaces legacy AE26S2-U5MUS
- S-Bezel (Talos Mid-Entry) for standard vending and amusement doors
- Up-Stacker with 500-note cassette
- Advanced anti-counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for tool-free maintenance
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | S-Bezel (Talos Mid-Entry) |
| Stacker Orientation | Upward (Up-Stacker) |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | 500 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s modern validator platform with enhanced optics and modular construction. |
| 6 | Model Family | T6 Series — direct replacement for AE26xx validators. |
| S | Bezel Type | Talos Mid-Entry S-Bezel used in standard vending and amusement applications. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB input for modern systems. |
| U5 | Stacker / Capacity | Up-Stacker with 500-note cassette capacity. |
| MUS | Build Code | U.S. MDB build (M-series mainboard) with Talos firmware. |
Summary:
The MEI Talos T6S2-U5MUS replaces the AE26S2-U5MUS, featuring a Talos Mid-Entry S-Bezel, Up-Stacker design, 24 V DC MDB operation, and a 500-note cassette for vending and amusement systems.
