MEI Talos T684-D10EUS Amusement Bill Acceptor
- SKU
- T684-D10EUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 12v DC |
| Bezel type | Compact (Down Stacker) "8" |
| Cashbox Size | 1000 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |

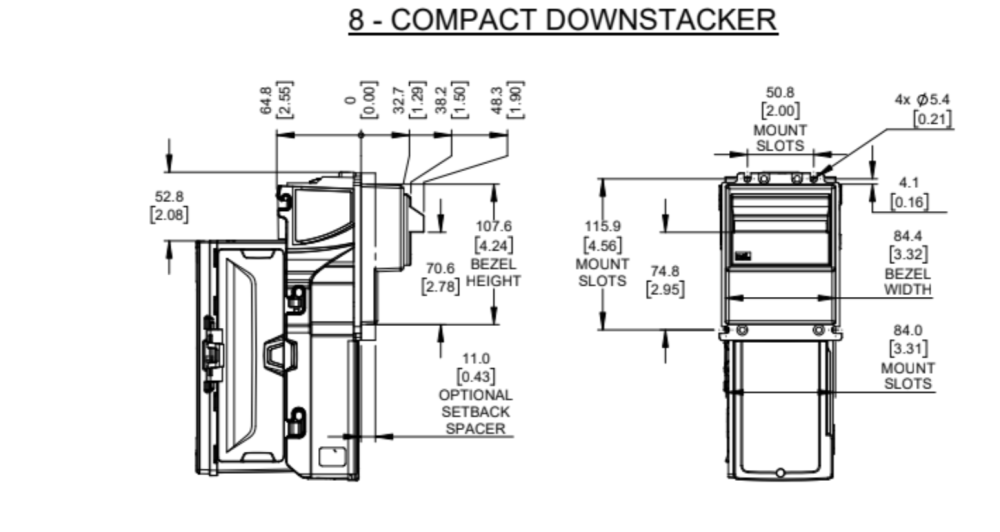

| Bezel Specs |
|

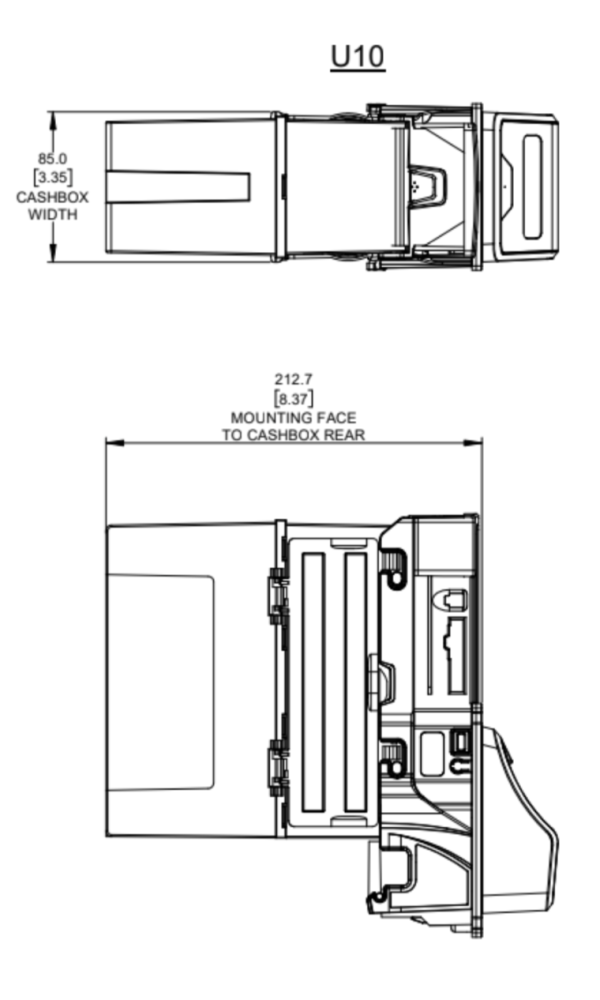

| Cashbox Specs |
|
Description / MEI Talos T684-D10EUS Amusement Bill Acceptor
Overview
The MEI Talos T684-D10EUS is a U.S.-currency bill validator from the Crane MEI Talos T6 Series, purpose-built for vending, kiosk, and amusement systems requiring 12 V DC power. It directly replaces the AE2684-D10EUS and combines Crane’s trusted validation accuracy with enhanced modular servicing and a larger stacker capacity.
This model uses a D-Bezel (High Visibility Compact) for maximum bill visibility and operator guidance in dimly lit or high-traffic environments. The Down-Stacker body and 1,000-note cassette make it ideal for high-volume routes and applications where extended service intervals are essential.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- 12 V DC MDB operation for compact systems
- Replaces legacy AE2684-D10EUS
- D-Bezel (High Visibility Compact) for improved user interaction
- Down-Stacker with 1,000-note capacity
- Advanced counterfeit and anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker cassette for easy maintenance
- Durable gear-driven transport for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | D-Bezel (High Visibility Compact) |
| Stacker Orientation | Downward (Down-Stacker) |
| Operating Voltage | 12 V DC ± 10% |
| Stacker Capacity | 1,000 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s latest validator platform with modular servicing and optical accuracy. |
| 6 | Model Family | T6 Series — direct replacement for AE26xx validators. |
| 8 | Bezel Type | High Visibility Compact D-Bezel for vending and amusement applications. |
| 4 | Power Configuration | 12 V DC input — compact MDB power configuration for smaller systems. |
| D10 | Stacker / Capacity | Down-Stacker with 1,000-note cassette capacity. |
| EUS | Build Code | U.S. E-series mainboard configuration with Talos firmware. |
Summary:
The MEI Talos T684-D10EUS replaces the AE2684-D10EUS, featuring a High Visibility Compact D-Bezel, Down-Stacker with 1,000-note capacity, and 12 V DC operation for compact vending and amusement systems.
