MEI Talos T642-U3EUS Amusement Bill Acceptor
- SKU
- T642-U3EUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |

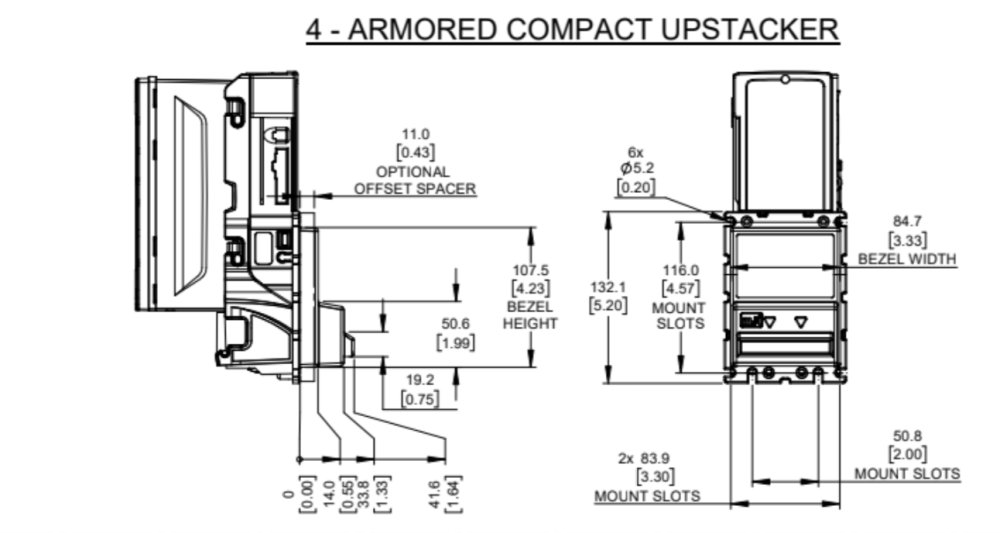

| Bezel type | Armored "4" |
| Cashbox Size | 300 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T642-U3EUS Amusement Bill Acceptor
Overview
The MEI Talos T642-U3EUS is a U.S.-currency MDB bill validator designed for vending, amusement, and kiosk systems. As part of the Crane MEI Talos T6 Series, it replaces the discontinued AE2642-U3EUS and brings faster validation, improved counterfeit protection, and simplified maintenance.
Using Crane MEI’s advanced Talos platform, the T642-U3EUS features upgraded optical sensors, modular service access, and a rugged gear-driven transport for long-term reliability. It’s fully MDB-compatible and engineered as a plug-and-play upgrade for AE26xx validators.
Key Features
- Accepts U.S. $1–$20 bills with fast, 4-way validation
- MDB communication protocol for vending and kiosk applications
- Replaces legacy AE2642-U3EUS
- Standard Talos bezel for universal front-entry installation
- Enhanced counterfeit and anti-stringing detection
- Field-upgradeable firmware via USB or handheld device
- Quick-release stacker for simple field maintenance
- Durable gear-driven mechanism for extended operational life
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 300 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s next-generation validator platform featuring modular design and improved optics. |
| 6 | Model Family | T6 Series — direct replacement for the AE26xx validator family. |
| 4 | Hardware Revision | Fourth-generation Talos hardware optimized for MDB vending and kiosk applications. |
| 2 | Interface Type | MDB communication protocol — standard for modern vending and amusement systems. |
| U3 | Stacker Configuration | Up-stacker with 300-note cassette — compact design ideal for vending and kiosk installations. |
| EUS | Build Code | U.S. standard MDB build (E-series control board) with Talos firmware and USD configuration. |
Summary:
The MEI Talos T642-U3EUS replaces the AE2642-U3EUS, offering faster validation, improved serviceability, and dependable Crane MEI quality for MDB vending and amusement systems.
