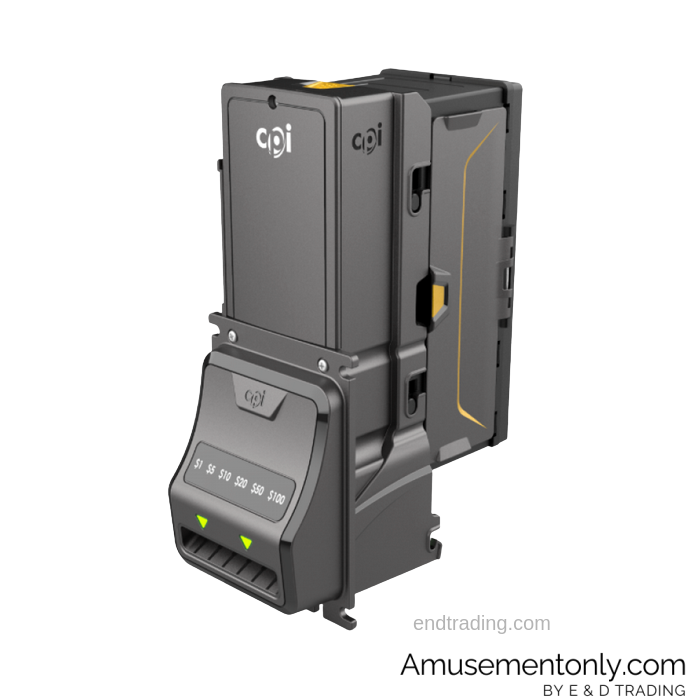

MEI Talos T631-D5EUS Amusement Bill Acceptor
- SKU
- T631-D5EUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 110v AC |

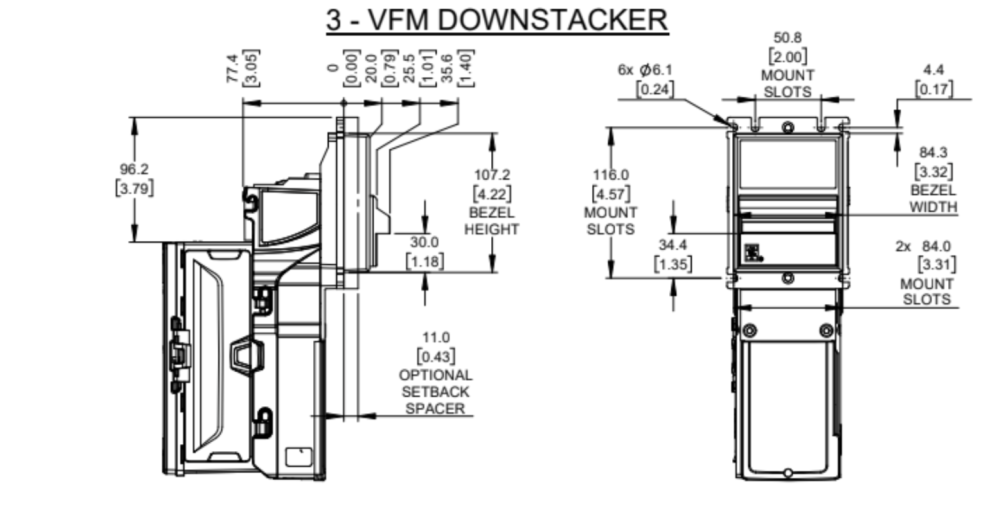

| Bezel type | VFM (Down Stacker "3" |

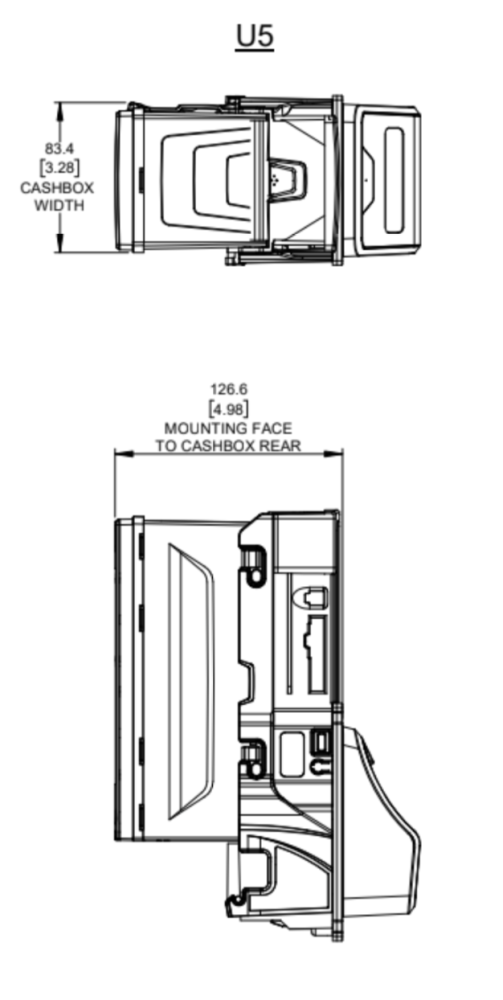

| Cashbox Size | 500 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |
|
| Cashbox Specs |
|
Description / MEI Talos T631-D5EUS Amusement Bill Acceptor
Overview
The MEI Talos T631-D5EUS is a U.S.-currency MDB bill validator designed for vending, kiosk, and amusement applications. As part of the Talos T6 Series, it replaces the discontinued AE2631-D5EUS model, offering faster validation, stronger counterfeit detection, and improved serviceability with a modular design.
Featuring MEI’s D-Bezel (High-Visibility Compact Bezel), this validator provides a bright, illuminated bill entry slot ideal for compact machine panels. The T631-D5EUS combines MEI’s proven gear-driven transport system with advanced optical sensors to ensure reliable note acceptance and reduced maintenance downtime.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical validation
- MDB interface for vending, kiosk, and amusement systems
- High-Visibility Compact D-Bezel for smaller door openings
- Replaces legacy AE2631-D5EUS
- Enhanced anti-stringing and counterfeit protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular construction for easy service
- Durable gear-driven transport for long-life reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | D-Bezel (High-Visibility Compact) |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (down-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — MEI’s next-generation validator platform offering enhanced optics and modular construction. |
| 6 | Model Family | T6 Series — direct replacement for the AE26xx validator family. |
| 3 | Design Variant | Third-generation Talos layout optimized for compact vending and kiosk doors. |
| 1 | Interface Revision | MDB communication protocol for vending and amusement systems. |
| D | Bezel / Stacker Orientation | High-Visibility Compact D-Bezel with down-stacker configuration. |
| 5 | Stacker Capacity | 500-note stacker box (standard capacity for compact MDB validators). |
| EUS | Build Code | U.S. standard 24 V MDB configuration (E-series mainboard) with Talos firmware. |
Summary:
The MEI Talos T631-D5EUS replaces the AE2631-D5EUS, offering a compact high-visibility D-Bezel, down-stacker design, and Crane MEI’s proven Talos performance for modern MDB vending and amusement systems.
