MEI Talos T602-U10MUS Amusement Bill Acceptor
- SKU
- T602-U10MUS
More Information
| Manufacturer | MEI |
|---|---|
| Voltage | 24v/34v DC |

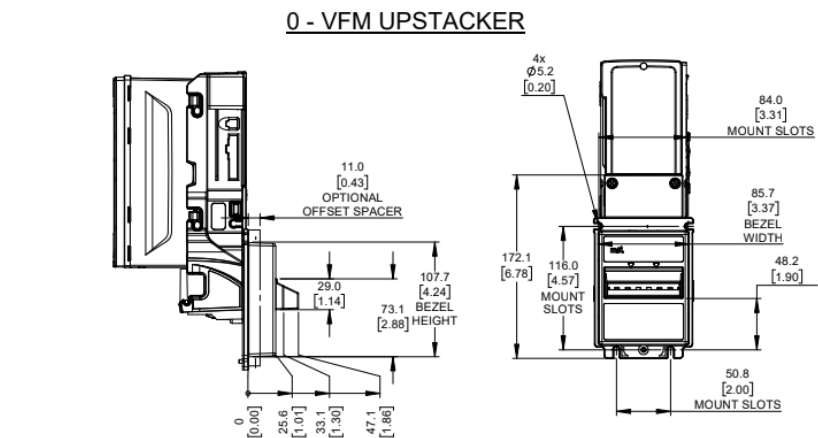

| Bezel type | VFM (Up stacker) "0" |
| Cashbox Size | 1000 Stacker |
| Currency Accepted | United States Dollar |
| Denominations | $1-$20 |
| Bill Recycler | No |
| Bezel Specs |  |
| Cashbox Specs |
|
Description / MEI Talos T602-U10MUS Amusement Bill Acceptor
Overview
The MEI Talos T602-U10MUS is a U.S.-currency MDB bill validator designed for vending, kiosk, and amusement applications. As part of the Crane MEI Talos T6 Series, it replaces the discontinued AE2602-U10MUS model, offering faster note acceptance, improved security, and reduced maintenance downtime.
Built with Crane MEI’s latest Talos platform, the T602-U10MUS delivers superior optical sensing, a rugged gear-driven transport, and modular construction for easy servicing. Its MDB compatibility allows seamless integration with existing systems, providing drop-in replacement capability for AE26xx models.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical validation
- MDB protocol for vending, kiosk, and amusement systems
- Replaces the discontinued AE2602-U10MUS
- Standard Talos bezel for universal front-entry installation
- Enhanced anti-stringing and counterfeit detection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular internal design
- Durable gear-driven mechanism for long service life
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 1000 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s next-generation validator platform with enhanced optics and modular design. |
| 6 | Model Family | T6 Series — replacement for the AE26xx validator family. |
| 0 | Configuration Variant | Standard vending and amusement format. |
| 2 | Interface Type | MDB protocol for plug-and-play vending connectivity. |
| U10 | Stacker Configuration | Up-stacker model with 1000-note stacker box — designed for high-capacity vending and amusement machines. |
| MUS | Build Code | Standard U.S. factory build with MDB firmware and Talos mainboard. |
Summary:
The MEI Talos T602-U10MUS replaces the AE2602-U10MUS, delivering faster note validation, higher stacker capacity, and enhanced reliability for MDB vending and amusement systems.
AmusementOnly.com is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
