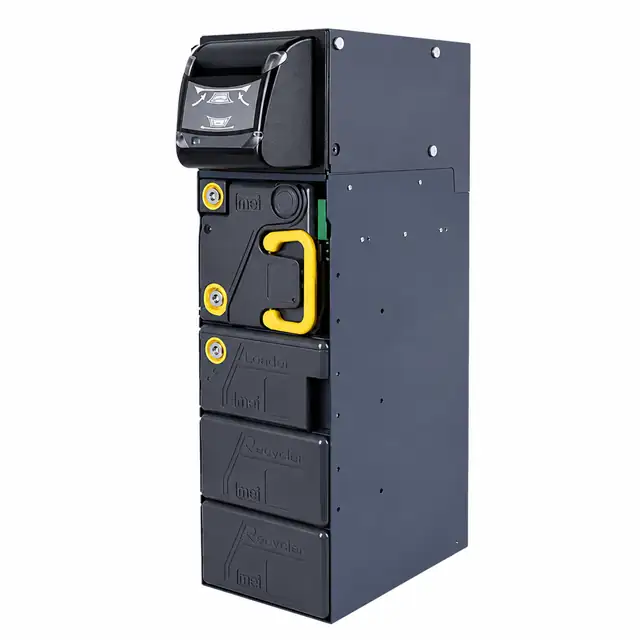

MEI BNR421 S Full Unit with Main Module B2 and Chassis Banknote Recycler
d Because it is already assembled, it suits new kiosk builds and complete swaps, with nothing extra to match up. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the number of cash collections at self-service, gaming and kiosk locations. E&D Trading…
| SKU | BNR421SB2Chassis |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / MEI BNR421 S Full Unit with Main Module B2 and Chassis Banknote Recycler
d
Because it is already assembled, it suits new kiosk builds and complete swaps, with nothing extra to match up. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the number of cash collections at self-service, gaming and kiosk locations.
Specifications
| Model | BNR |
|---|---|
| Setup | complete unit: Main Module B2 plus chassis |
| Comms | USB |
| Current draw | 0.5A standby; 8A while accepting |
| Denominations recycled | Up to 6 |
| Dimensions, closed | 604 mm × 165 mm × 275 mm |
| Dimensions, open | 604 mm × 165 mm × 336 mm |
| First-pass acceptance | 98% or higher |
| Humidity | 15% to 95% relative humidity |
| Operating voltage | 24VDC (-10% / +20%) |
| Order code | BNR421SB2Chassis |
| Product condition | New |
| Recycler storage | Up to 150 notes, four ways |
| Remote updates | Firmware and note-set software updates |
| Storage temp | -40°C to 70°C |
| Validation range | width 60–83 mm, length 120–190 mm |
| Validation sensors | Optical sensors |
| Working temperature | 0°C to 60°C |
E&D Trading is an authorized Crane MEI distributor. Send us your machine or platform details and we will confirm the right configuration, quote volume and arrange freight. Call 877-922-6707.
