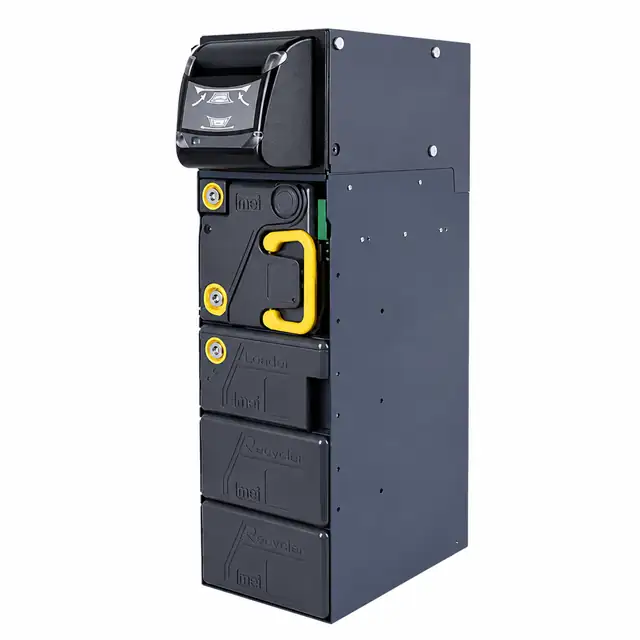

MEI BNR320 S Chassis CB600+2RE Banknote Recycler Chassis Assembly
d Pair it with the matching main module to build a full unit. Check the configuration and the space inside your cabinet before ordering, especially if you are moving from a different chassis layout. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the…
| SKU | BNR320SCB6002RE |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / MEI BNR320 S Chassis CB600+2RE Banknote Recycler Chassis Assembly
d
Pair it with the matching main module to build a full unit. Check the configuration and the space inside your cabinet before ordering, especially if you are moving from a different chassis layout. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the number of cash collections at self-service, gaming and kiosk locations.
Specifications
| Model | BNR320 S |
|---|---|
| Cash box | CB600 |
| Comms | USB |
| Current draw | 0.5A standby; 8A while accepting |
| Dimensions, closed | 604 mm × 165 mm × 275 mm |
| Dimensions, open | 604 mm × 165 mm × 336 mm |
| First-pass acceptance | 98% or higher |
| Humidity | 15% to 95% relative humidity |
| Note validation range | 60–83 mm width and 120–190 mm length |
| Product line | BNR Advance |
| Recycler configuration | 2RE; supports up to 6 recycled denominations |
| Recycler storage | Up to 150 notes, four ways |
| Software maintenance | Remote firmware and note-set updates |
| Storage temp | -40°C to 70°C |
| Supply | 24VDC (-10% / +20%) |
| Type | Banknote recycler chassis assembly |
| Validation sensors | Optical sensors |
| Working temperature | 0°C to 60°C |
E&D Trading is an authorized Crane MEI distributor. Send us your machine or platform details and we will confirm the right configuration, quote volume and arrange freight. Call 877-922-6707.
