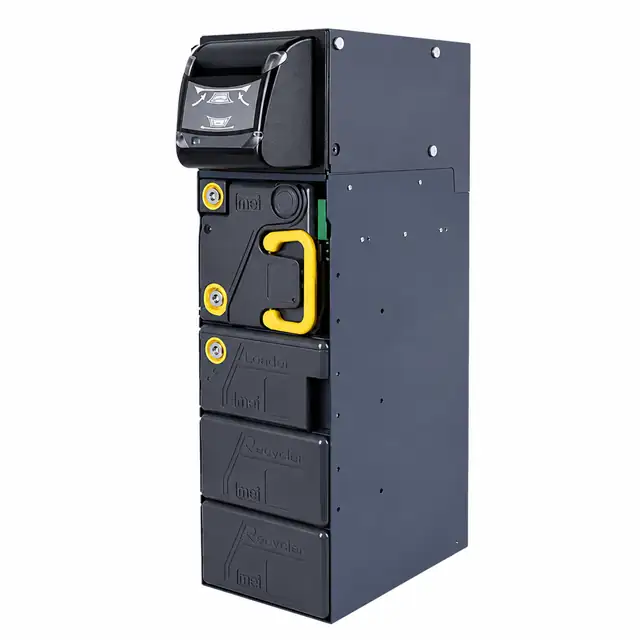

MEI BNR311 S Chassis CB600+1RE+1LO Banknote Recycler Chassis Assembly
Pair it with the matching main module to build a full unit. Check the configuration and the space inside your cabinet before ordering, especially if you are moving from a different chassis layout. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the…
| SKU | BNR311SCB6001RE1LO |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / MEI BNR311 S Chassis CB600+1RE+1LO Banknote Recycler Chassis Assembly
Pair it with the matching main module to build a full unit. Check the configuration and the space inside your cabinet before ordering, especially if you are moving from a different chassis layout. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the number of cash collections at self-service, gaming and kiosk locations.
Specifications
| Model | BNR311 S |
|---|---|
| Setup | CB600 cashbox, 1RE recycler module, and 1LO loader cassette |
| Cash handling | Closed-loop banknote recycling |
| Comms | USB |
| Current draw | 0.5A standby; 8A accepting |
| Dimensions closed | 604 mm × 165 mm × 275 mm |
| Dimensions open | 604 mm × 165 mm × 336 mm |
| Firmware and note-set updates | Remote software updates supported |
| First-pass acceptance | 98% or higher |
| Humidity | 15% to 95% relative humidity |
| Note dimensions supported | 60–83 mm width and 120–190 mm length |
| Order code | BNR311SCB6001RE1LO |
| Product line | BNR Advance |
| Recycler storage | Up to 150 notes, four ways |
| Recycling capability | Up to 6 denominations |
| Stacker capacity | 600 notes |
| Storage temp | -40°C to 70°C |
| Supply | 24VDC (-10% / +20%) |
| Type | Banknote recycler chassis assembly |
| Validation | Optical sensors |
| Working temperature | 0°C to 60°C |
E&D Trading is an authorized Crane MEI distributor. Send us your machine or platform details and we will confirm the right configuration, quote volume and arrange freight. Call 877-922-6707.
