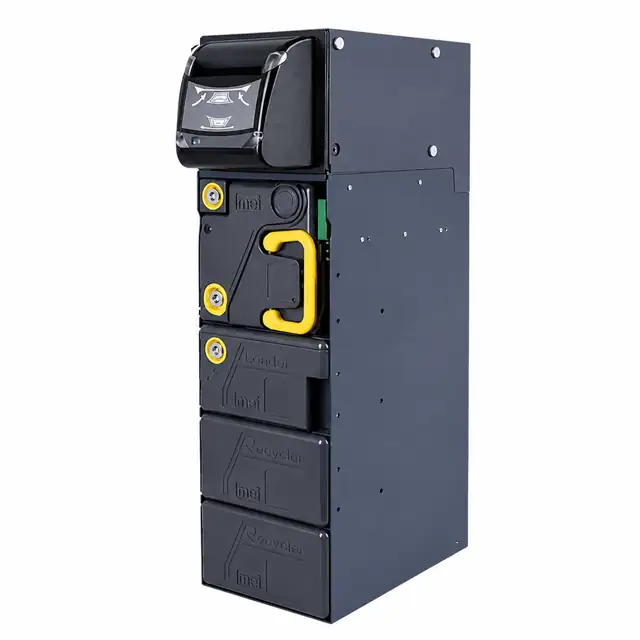

MEI BNR310 M Full Unit Main Module B2 with Chassis Banknote Recycler
A Because it is already assembled, it suits new kiosk builds and complete swaps, with nothing extra to match up. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the number of cash collections at self-service, gaming and kiosk locations. E&D Trading…
| SKU | BNR310M |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / MEI BNR310 M Full Unit Main Module B2 with Chassis Banknote Recycler
A
Because it is already assembled, it suits new kiosk builds and complete swaps, with nothing extra to match up. A recycler pays customers back with the same notes they put in, which cuts change-fund costs and the number of cash collections at self-service, gaming and kiosk locations.
Specifications
| Model | BNR310 M |
|---|---|
| SKU | BNR310M |
| Accepting | 8A |
| Assembly | Chassis |
| Comms | USB |
| Current draw | Standby: 0.5A |
| Denominations recycled | Up to 6 |
| Dimensions, closed | 604 mm × 165 mm × 275 mm |
| Dimensions, open | 604 mm × 165 mm × 336 mm |
| Firmware and note sets | Remote software updates supported |
| First-pass acceptance | 98% or higher |
| Head module | B2 |
| Humidity | 15% to 95% relative humidity |
| Note validation range | 60–83 mm width and 120–190 mm length |
| Product line | BNR Advance |
| Recycler storage | Up to 150 notes, Four Ways |
| Storage temp | -40°C to 70°C |
| Supply | 24VDC (-10% / +20%) |
| Type | Full Unit banknote recycler |
| Validation sensors | Optical sensors |
| Working temperature | 0°C to 60°C |
E&D Trading is an authorized Crane MEI distributor. Send us your machine or platform details and we will confirm the right configuration, quote volume and arrange freight. Call 877-922-6707.
