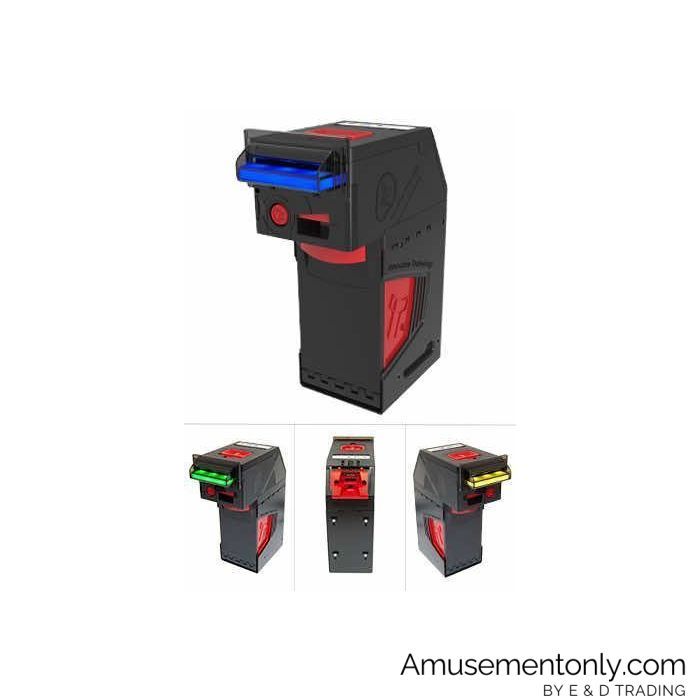

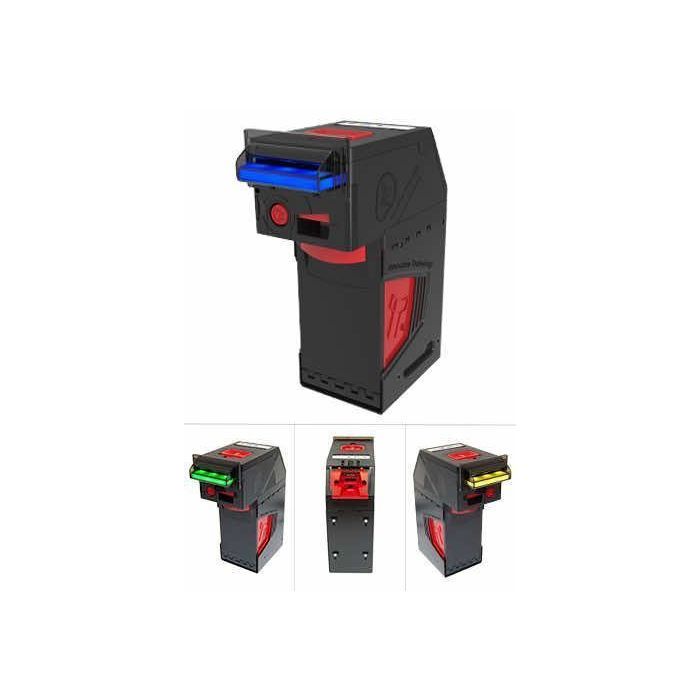

Innovative Technology NV200 Bill Acceptor

The NV200 Spectral is a highly secure and technologically advanced banknote validator, featuring state-of-the-art spectral sensors for full note image capture, ensuring the highest level of note authentication. It boasts a 99%+ first-time acceptance rate for both new and street-grade notes with a rapid note-to-note processing time of just 2 seconds.

Designed with enhanced fraud protection, it incorporates optical and mechanical anti-strimming technology. Its advanced note centring mechanism and 4-way barcode acceptance enhance handling efficiency and ticket acceptance rates. Optional add-on modules, such as Spectral Payout for mixed denomination note recycling and SMART Ticket for ticket-in/ticket-out functionality, provide additional versatility.

Technical Specifications

• USB On-Board: Yes
• Note Processing: Accepts and stacks notes in just 3 seconds
• Power Supply: 12VDC +/- 10%
• Programming: Simple and advanced via PC, handheld unit, or Atmel Dataflash Card
• Anti-Strimming Devices: Optical and mechanical
• Cashbox Capacity: 500 or 1000 street-grade notes
• Dimensions: 114mm x 217mm x 298mm
• Weight: 3.2 kg

Key Features

• 100% Note Image Capture: 4.8 million datapoints for superior validation
• Acceptance Rate: 99%+ first-time acceptance for new and street-grade notes
• Stained Note Detection: Ensures secure and reliable operation
• Processing Speed: 2-second note-to-note processing
• Modular Design: Optional recycler and ticket printer

Bezel Options

• Standard Bezel
• Metal Bezel
• Self-Aligning Bezel
• Various Illumination Options

Supported Specifications

• Note Dimensions: Width: 60-85 mm; Length: 115-170 mm
• Power Requirements:
  • Standby: 12V - 350mA; 24V - 200mA
  • Running: 1.5A
  • Peak: 3.5A
• Interfaces: USB 2.0, RS232, Open Collector, Opto-Isolated
• Protocols: SSP, ccTalk
• MCBF: 200,000 cycles
