The ICT WEL-RXBA21 Cable supports ccTalk interface with 12/24V DC for power and data communication. Designed for vending and amusement machine integration.
$18.95
- SKU
- WEL-RXBA21
Description / ICT WEL-RXBA21 Cable – ccTalk 12/24V Power & Data

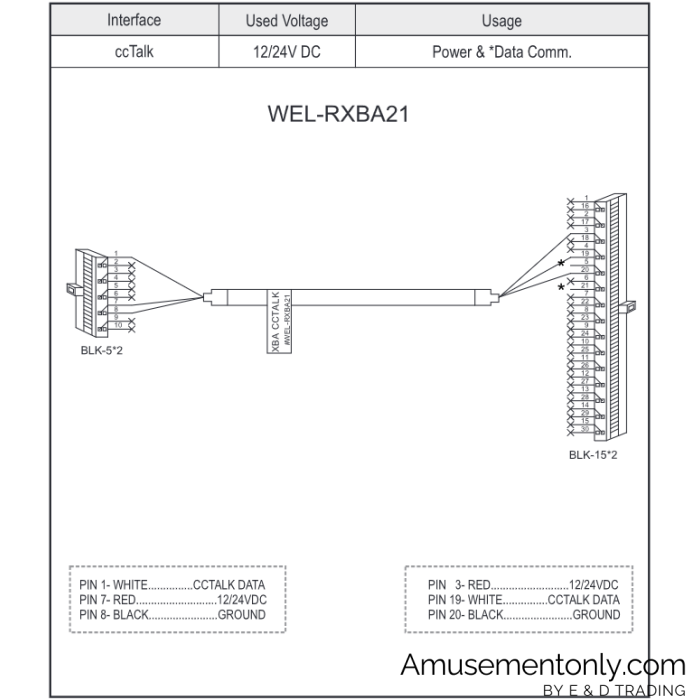

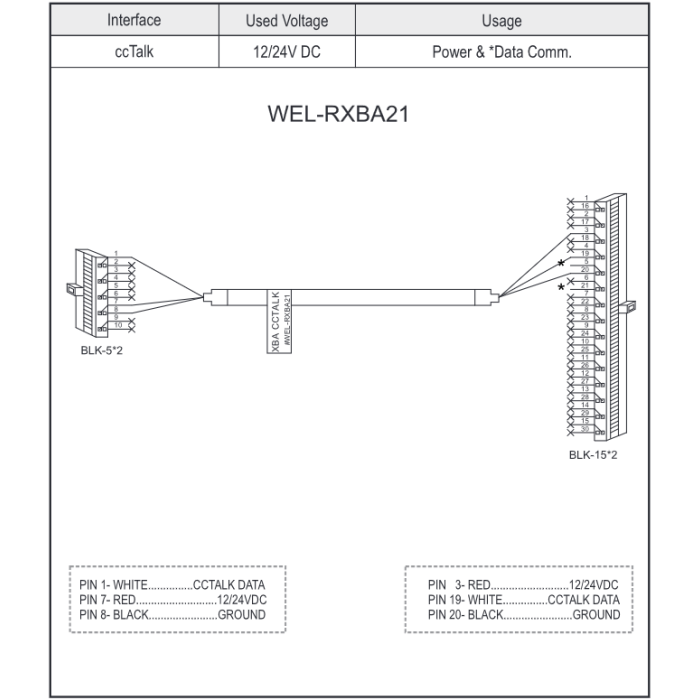

WEL-RXBA21 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| ccTalk | 12/24V DC | Power & *Data Comm. |
WEL-RXBA21
BLK-5*2 Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 1 | White | CCTALK DATA |
| PIN 7 | Red | 12/24VDC |
| PIN 8 | Black | GROUND |
BLAK-15*2 Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 3 | Red | 12/24VDC |
| PIN 19 | White | CCTALK DATA |
| PIN 20 | Black | GROUND |
