ICT WEL-RXBA20 Cable
The ICT WEL-RXBA20 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RXBA20 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RXBA20 Cable
The ICT WEL-RXBA20 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-RXBA20 |
|---|---|
| Connectors | JST XLR-08V & BLK-15×2 (30-pin connector) |
| Functions | power & data communication |
| Interface | JPSTD |
| Voltage (operating) | 24V DC |

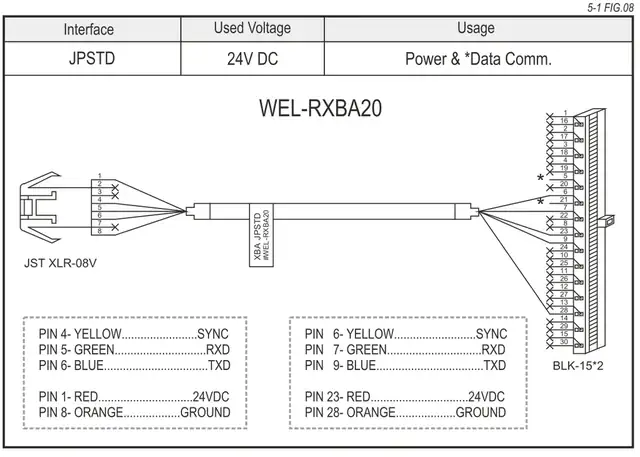

Wire-by-wire: For the JST XLR-08V connector,
| Signal | Pin | Wire colour |
|---|---|---|
| is 24V DC | 1 | (red) |
| is SYNC | 4 | (yellow) |
| is RXD | 5 | (green) |
| is TXD | 6 | (blue) |
| is Ground | 8 | (orange) |
Wire-by-wire: At the BLK-15×2 connector,
| Signal | Pin | Wire colour |
|---|---|---|
| is 24V DC | 23 | (red) |
| is SYNC | 6 | (yellow) |
| is RXD | 7 | (green) |
| is TXD | 9 | (blue) |
| is Ground | 28 | (orange) |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
