ICT WEL-RXBA18 Cable
The ICT WEL-RXBA18 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RXBA18 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RXBA18 Cable
The ICT WEL-RXBA18 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Connectors | AMP 172340-1, D-SUB 9F (Female), BLK-15X2. |
|---|---|
| Protocols | ICT Protocol, ccNet, RS232 A0; each supports 12V DC power & data communication. |

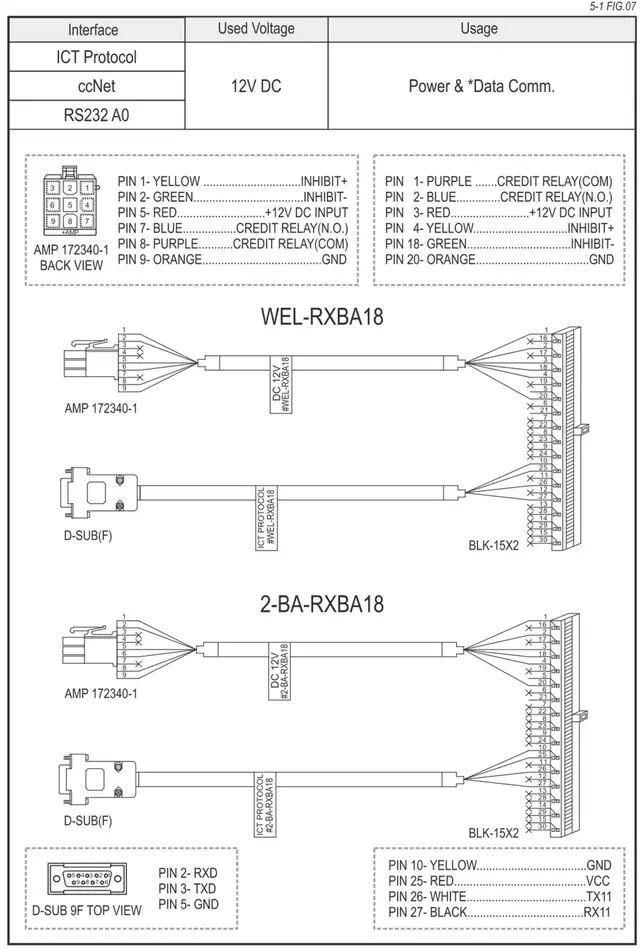

Wire-by-wire: AMP 172340-1, back view
| Signal | Pin | Wire colour |
|---|---|---|
| INHIBIT+ | 1 | yellow |
| INHIBIT- | 2 | green |
| +12V DC Input | 5 | red |
| Credit Relay (N.O.) | 7 | blue |
| Credit Relay (COM) | 8 | purple |
| GND | 9 | orange |
Wire-by-wire: BLK-15X2
| Signal | Pin | Wire colour |
|---|---|---|
| Credit Relay (COM) | 1 | purple |
| Credit Relay (N.O.) | 2 | blue |
| +12V DC Input | 3 | red |
| INHIBIT+ | 4 | yellow |
| INHIBIT- | 18 | green |
| GND | 20 | orange |
Wire-by-wire: D-SUB 9F, top view
| Signal | Pin | Wire colour |
|---|---|---|
| — | 2 | rxd |
| — | 3 | txd |
| — | 5 | gnd |
Wire-by-wire: Additional BLK-15X2 communication
| Signal | Pin | Wire colour |
|---|---|---|
| GND | 10 | yellow |
| VCC | 25 | red |
| TX11 | 26 | white |
| RX11 | 27 | black |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
