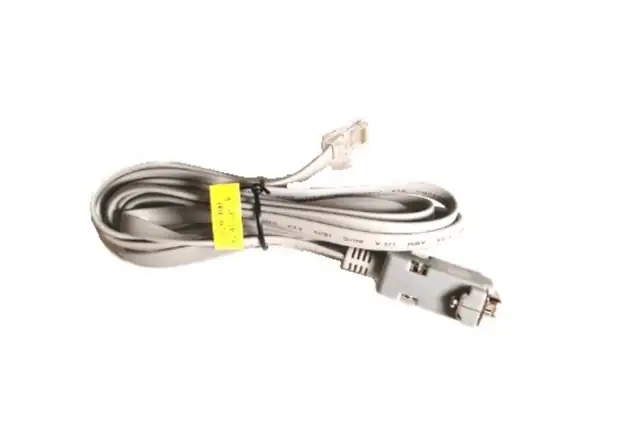

ICT WEL-RV706-1 Serial Cable
The ICT WEL-RV706-1 Serial Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector,…
| SKU | WEL-RV706-1 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RV706-1 Serial Cable
The ICT WEL-RV706-1 Serial Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-RV706-1 |
|---|---|
| Cable | 26 AWG, 6-core phone cable |
| Configurations (voltage) | 12V DC & 117V AC |
| Connectors | D-SUB 9-pin female (DB9F) & RJ-45 |
| Interface | RS232 for ICT Protocol; used for data communication |
Works with
- LX7
- LX7A
- PA7
- PA7E
- S7A
- V7P
Wire-by-wire: DB9 top-view assignments
| Signal | Pin | Wire colour |
|---|---|---|
| Reserved | 1 | |
| — | 2 | rxd |
| — | 3 | txd |
| Reserved | 4 |
Wire-by-wire: RJ-45 assignments are
| Signal | Pin | Wire colour |
|---|---|---|
| — | 1 | blue/gnd |
| — | 2 | yellow/tx22 |
| — | 6 | red/vcc |
| — | 7 | black/rx11 |
| — | 8 | white/tx11 |
Good to know
- RX11
- RX22
- TX11
- TX22
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
