ICT WEL-RV703 Cable
The ICT WEL-RV703 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RV703 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RV703 Cable
The ICT WEL-RV703 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Carries | Power & Data Comm. |
|---|---|
| Connector | BLK-1572 AMP 172340-1 BACK VIEW |
| Interface | STD Pulse |
| Voltage | 12V AC |
Works with
- LX7
- S7A
- V7P

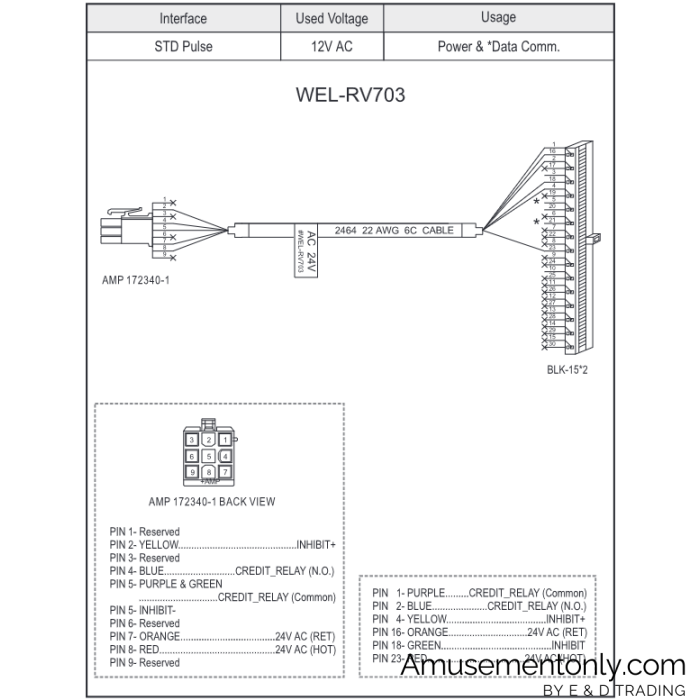

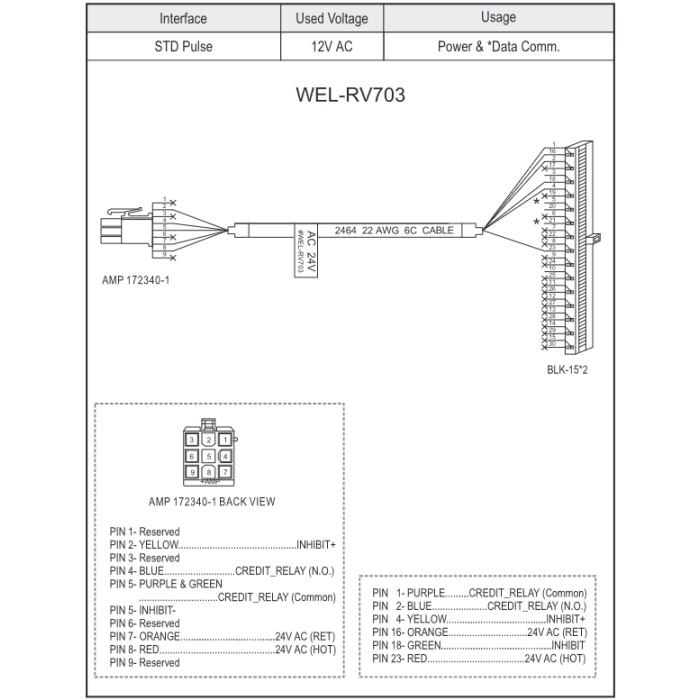

Pinout
| Signal | Pin | Wire |
|---|---|---|
| Reserved | 1 | Reserved |
| INHIBIT+ | 2 | Yellow |
| Reserved | 3 | Reserved |
| CREDIT_RELAY (N.O.) | 4 | Blue |
| CREDIT_RELAY (COMMON) | 5 | Purple & Green |
| INHIBIT+ | 6 | N/A |
| Reserved | 7 | Reserved |
| 24V AC (RET) | 8 | Orange |
| 24V AC (HOT) | 9 | Red |
| Reserved | 10 | Reserved |
Good to know
- PIN 16 Orange — 24V AC (RET);
- PIN 18 Green — INHIBIT;
- The ICT WEL-RV703 is a 2464 22 AWG 6C cable for STD Pulse devices.
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
