ICT WEL-RV702 Cable
The ICT WEL-RV702 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RV702 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RV702 Cable
The ICT WEL-RV702 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-RV702 |
|---|---|
| Carries | Extension wire for WEL-RV703 |
| Interface | STD Pulse |
| Voltage | 24V AC |
Works with
- LX7
- S7A
- V7P

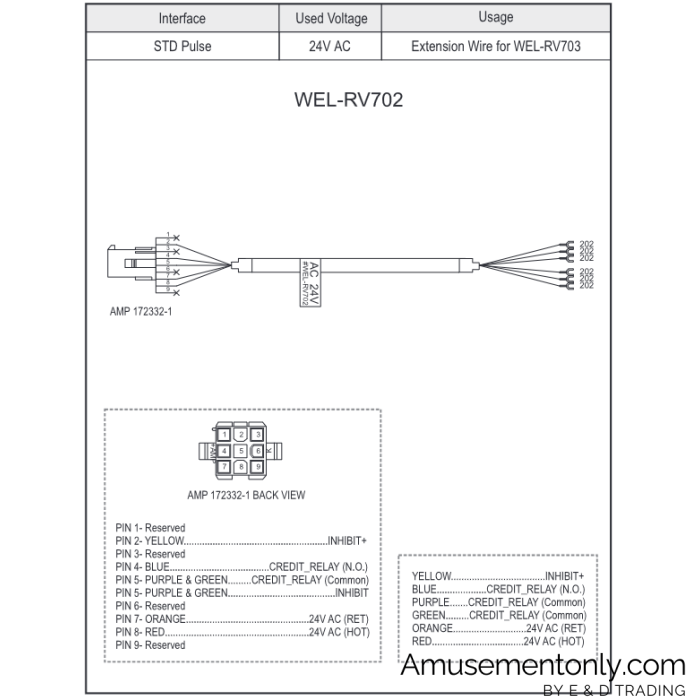

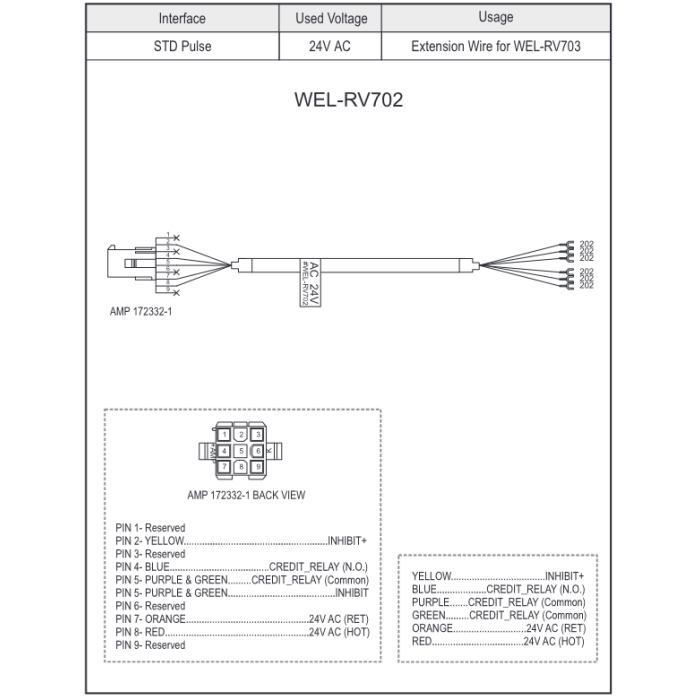

Wire-by-wire: Pin assignments are listed from the back view
| Signal | Pin | Wire colour |
|---|---|---|
| reserved | 1 | |
| reserved | 3 | |
| reserved | 9 |
Good to know
- The cable uses an AMP 172332-1 connector.
- pins 5 and 6 purple & green, respectively CREDIT_RELAY (COMMON) and INHIBIT
- pin 8 red, 24V AC (HOT)
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
