ICT WEL-RV701 Cable
The ICT WEL-RV701 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RV701. |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RV701 Cable
The ICT WEL-RV701 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Cable | BLC 15'2 |
|---|---|
| Connector | AMP 172340-1 |
| Protocol (RS232) (ict) | 12V DC power |
| Pulse (std) | 12V DC power & data communication |
| Reference | RW(EL,6V70) |
| Voltage | 12V DC |
Works with
- LX7
- S7A
- V7P

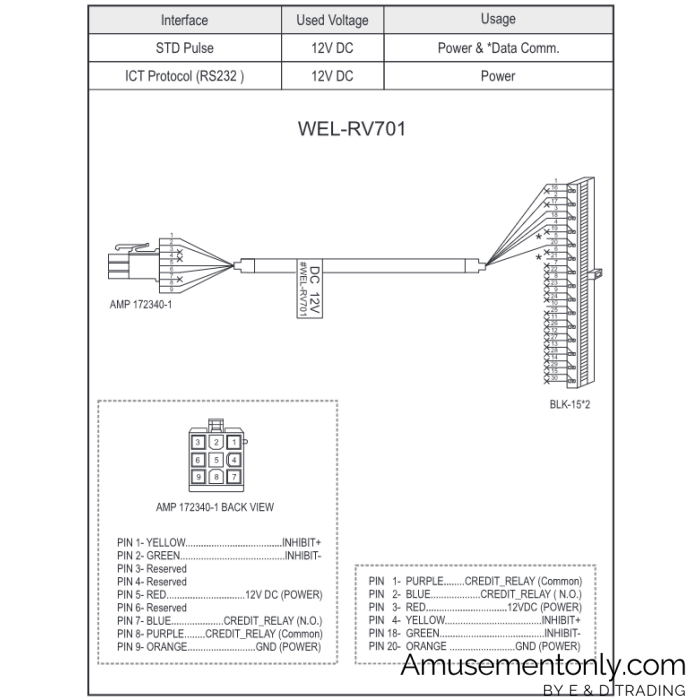

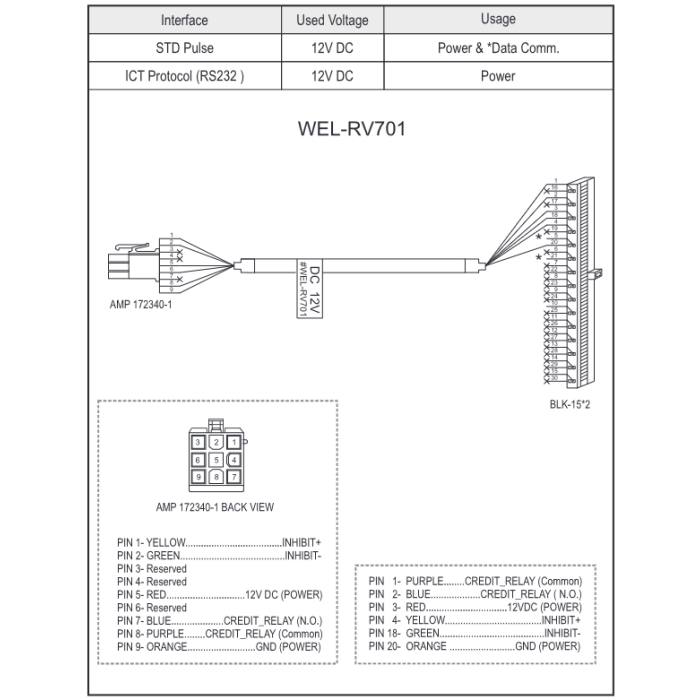

Wire-by-wire: AMP 172340-1 back-view pinout
| Signal | Pin | Wire colour |
|---|---|---|
| — | 1 | yellow—inhibit+ |
| — | 2 | green—inhibit- |
| DC (POWER) | 5 | red—12v |
| (N.O.) | 7 | blue—credit_relay |
| (Common) | 8 | purple—credit_relay |
| (POWER) | 9 | orange—gnd |
Wire-by-wire: Additional pin configuration
| Signal | Pin | Wire colour |
|---|---|---|
| (Common) | 1 | purple—credit_relay |
| (N.O.) | 2 | blue—credit_relay |
| DC (POWER) | 3 | red—12v |
| — | 4 | yellow—inhibit+ |
| — | 18 | green—inhibit- |
| (POWER) | 20 | orange—gnd |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
