ICT WEL-RTK7708-1 Cable
The ICT WEL-RTK7708-1 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage…
| SKU | WEL-RTK7708-1 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RTK7708-1 Cable
The ICT WEL-RTK7708-1 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Cable | 2464 22 AWG 8-core |
|---|---|
| Connectors | TMT 2×5 (2.0mm), Molex 51004-10P, TMT 2×4 (2.0mm) |
| Interface | MDB box to bill acceptor, including BA ↔ plug-in board connection |
| Voltage | 12V DC |

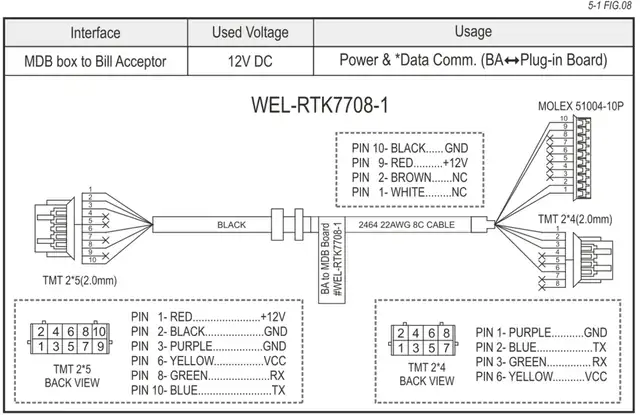

Wire-by-wire: TMT 2×5
| Signal | Pin | Wire colour |
|---|---|---|
| +12V | 1 | red |
| GND | 2 | black |
| GND | 3 | purple |
| VCC | 6 | yellow |
| RX | 8 | green |
| TX | 10 | blue |
Wire-by-wire: TMT 2×4
| Signal | Pin | Wire colour |
|---|---|---|
| GND | 1 | purple |
| TX | 2 | blue |
| RX | 3 | green |
| VCC | 6 | yellow |
Wire-by-wire: Molex 51004-10P
| Signal | Pin | Wire colour |
|---|---|---|
| GND | 10 | black |
| +12V | 9 | red |
| N.C | 2 | brown |
| N.C | 1 | white |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
