Description / ICT WEL-RS7P02
Wiring an ICT bill acceptor into an MDB machine? The ICT WEL-RS7P02 (part number WE7P02L-RS) carries both DC power and MDB data on one six-conductor, 22 AWG cable.
It works with 12V/24V DC MDB systems, so it fits ICT validators in vending machines, kiosks and amusement equipment. Connectors are a Molex 5557-6R, a Molex 5559-06P and a BLK-15*2 30-pin connector.

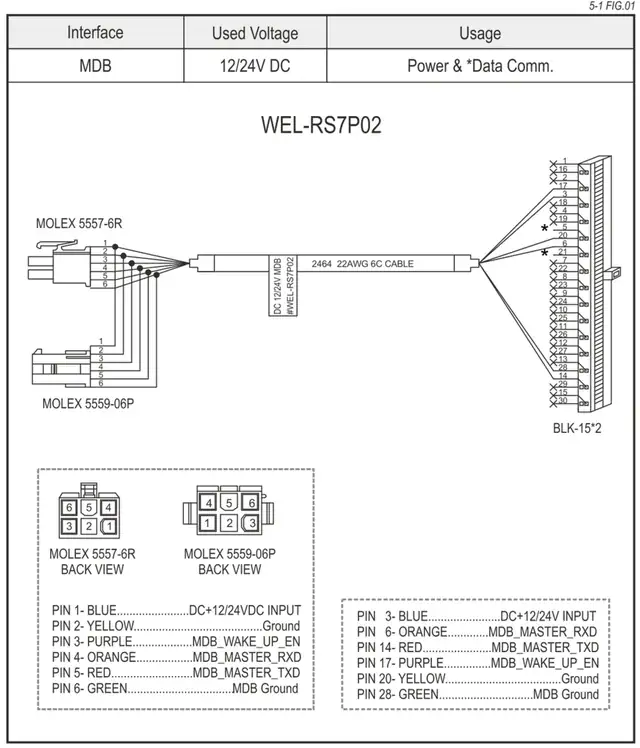

Pinout
| Signal | Molex 5557-6R (rear view) | BLK-15*2 |
|---|---|---|
| DC +12/24V in | Pin 1, blue | Pin 3, blue |
| Ground | Pin 2, yellow | Pin 20, yellow |
| MDB Wake Up Enable | Pin 3, purple | Pin 17, purple |
| MDB Master RXD | Pin 4, orange | Pin 6, orange |
| MDB Master TXD | Pin 5, red | Pin 14, red |
| MDB Ground | Pin 6, green | Pin 28, green |
Not sure this is the right harness for your validator? Call 877-922-6707 and E&D Trading, an authorized ICT reseller, will check it for you.
