ICT WEL-RM039 Cable
The ICT WEL-RM039 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RM039 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RM039 Cable
The ICT WEL-RM039 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it. It speaks ccTalk as well as simpler signalling, so it fits many control boards.
Specifications
| Cable | BLK-15*2 |
|---|---|
| Housing (connector) | Dual Row Crimp Connector Housing AMP 172340-1 |
| Interface | ccTalk |
| Voltage | 12V DC |
Works with
- LX7A

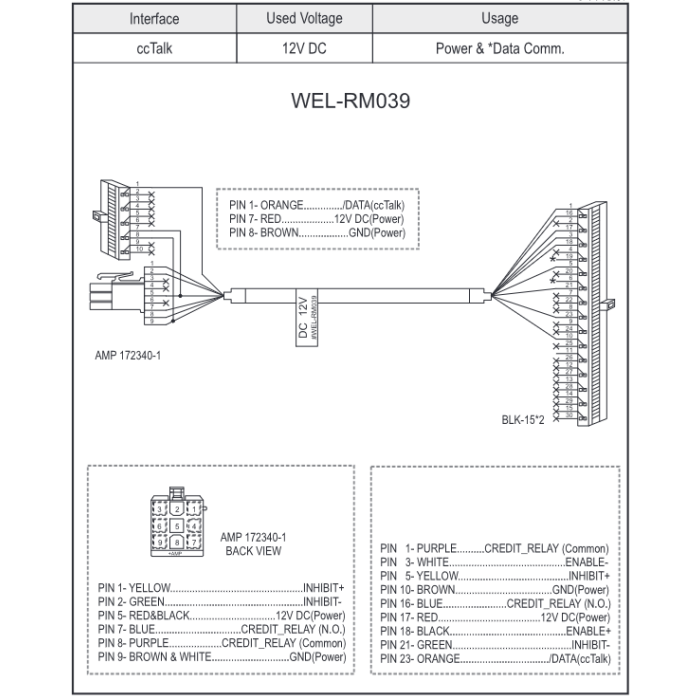

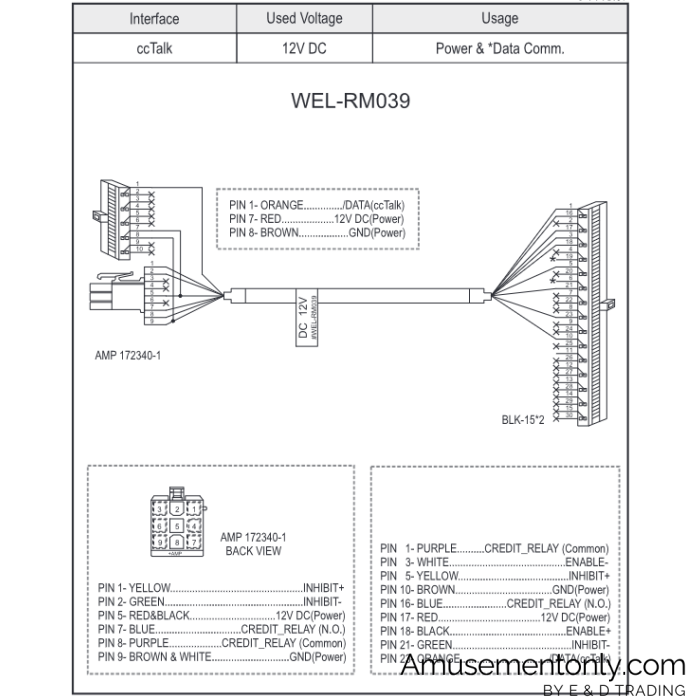

Wire-by-wire: Part 1 assigns
| Signal | Pin | Wire colour |
|---|---|---|
| to DATA (ccTalk) | 1 | orange |
| to 12V DC (Power) | 7 | red |
| to GND (Power) | 8 | brown |
Wire-by-wire: Part 2
| Signal | Pin | Wire colour |
|---|---|---|
| INHIBIT+ | 1 | yellow |
| INHIBIT- | 2 | green |
| & black 12V DC (Power) | 5 | red |
| CREDIT_RELAY (N.O.) | 7 | blue |
| CREDIT_RELAY (Common) | 8 | purple |
| & white GND (Power) | 9 | brown |
Wire-by-wire: Part 3
| Signal | Pin | Wire colour |
|---|---|---|
| CREDIT_RELAY (Common) | 1 | purple |
| ENABLE- | 3 | white |
| INHIBIT+ | 5 | yellow |
| GND (Power) | 10 | brown |
| CREDIT_RELAY (N.O.) | 16 | blue |
| 12V DC (Power) | 17 | red |
| ENABLE+ | 18 | black |
| INHIBIT- | 21 | green |
| DATA (ccTalk) | 23 | orange |
