ICT WEL-RM035 Cable
The ICT WEL-RM035 cable supports the 117V AC Pulse interface for power and data communication, featuring AMP 172340-1 connectors with dedicated HOT, NEUTRAL, INHIBIT, and CREDIT_RELAY pins.
$13.95
- SKU
- WEL-RM035
Description / ICT WEL-RM035 Cable

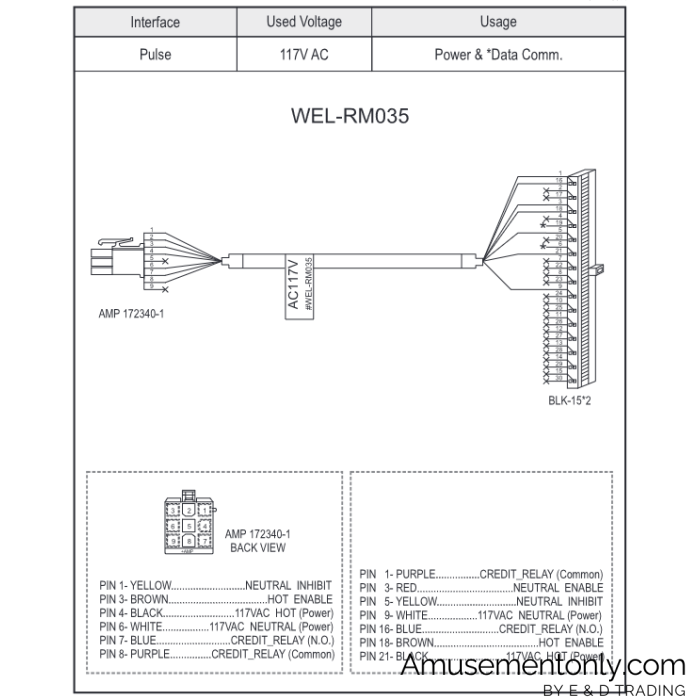

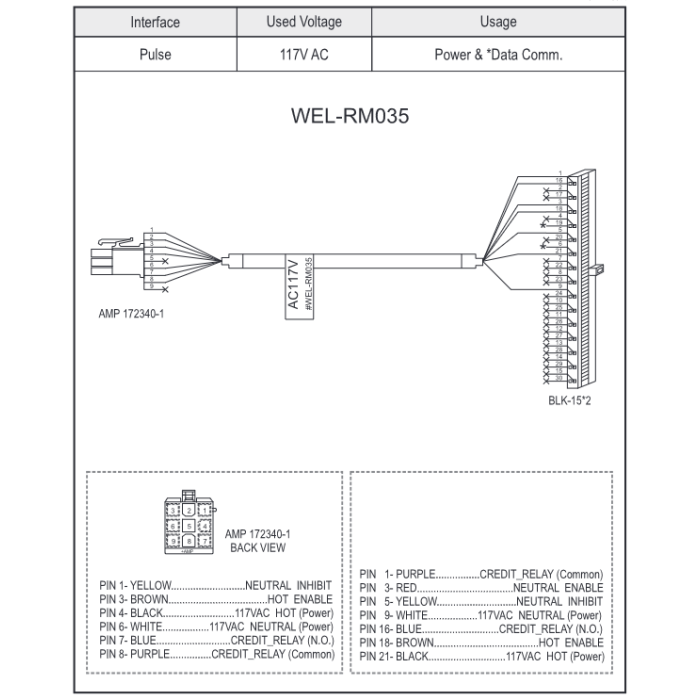

WEL-RM035 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| Pulse | 117V AC | Power & Data Communication |
WEL-RM035
Pin Configuration (Part 1)
| Pin | Color | Function |
|---|---|---|
| PIN 1 | YELLOW | NEUTRAL INHIBIT |
| PIN 3 | BROWN | HOT ENABLE |
| PIN 4 | BLACK | 117VAC HOT (Power) |
| PIN 5 | WHITE | 117VAC NEUTRAL (Power) |
| PIN 7 | BLUE | CREDIT_RELAY (N.O.) |
| PIN 8 | PURPLE | CREDIT_RELAY (Common) |
Dual Row Crimp Connector Housing
AMP 172340-1
Pin Configuration (Part 2)
| Pin | Color | Function |
|---|---|---|
| PIN 1 | PURPLE | CREDIT_RELAY (Common) |
| PIN 3 | RED | NEUTRAL ENABLE |
| PIN 5 | YELLOW | NEUTRAL INHIBIT |
| PIN 9 | WHITE | 117VAC NEUTRAL (Power) |
| PIN 16 | BLUE | CREDIT_RELAY (N.O.) |
| PIN 18 | BROWN | HOT ENABLE |
| PIN 21 | BLACK | 117VAC HOT (Power) |
Cable Specifications
Cable: BLK-15*2
Connector: AMP 172340-1
