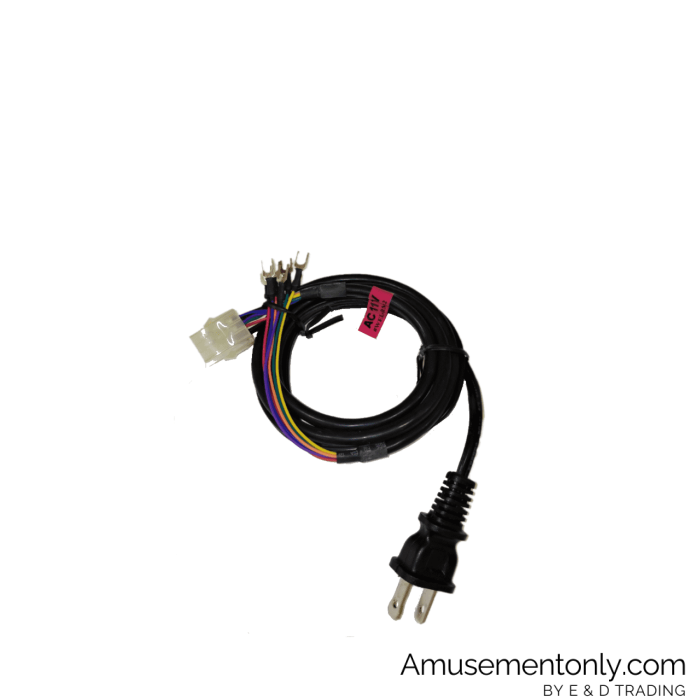

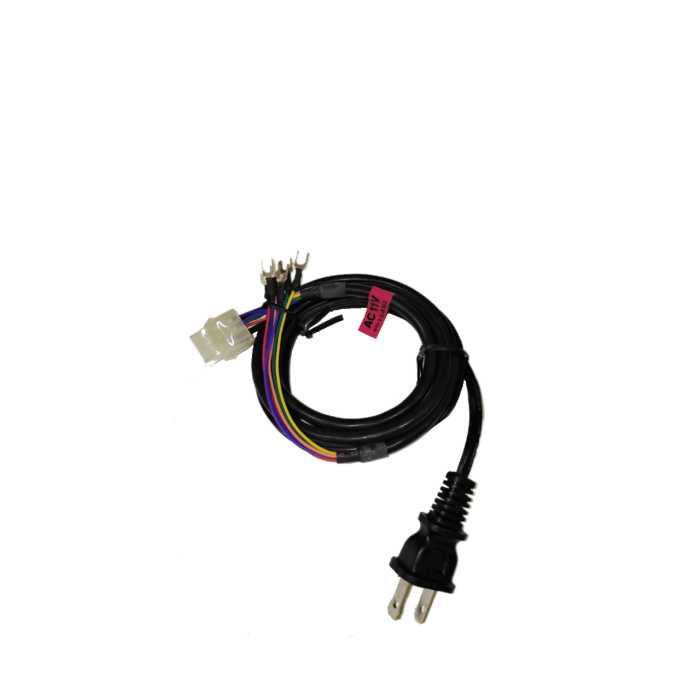

ICT WEL-RM012 110v Fanout Power Cable
The ICT WEL-RM012 Fanout Harness delivers reliable power and communication connectivity with support for AMP 172332-1 wiring, voltage routing, and ICT interface requirements.
$11.95
- SKU
- WEL-RM012
Description / ICT WEL-RM012 110v Fanout Power Cable
WEL-RM012 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| Pulse | 117V AC | Extension Wire for WEL-RM008 |
| RS232 for ICT Protocol | 117V AC | Extension Wire for WEL-RM008 |
WEL-RM012
AMP 172332-1 Pinout
| Pin | Color | Function |
|---|---|---|
| PIN 1 | YELLOW | NEUTRAL INHIBIT |
| PIN 2 | RED | NEUTRAL ENABLE |
| PIN 3 | ORANGE | HOT ENABLE |
| PIN 4 | BLACK | 117VAC HOT (Power) |
| PIN 5 | GREEN | Earth - Ground |
| PIN 6 | BLACK | 117VAC NEUTRAL (Power) |
| PIN 7 | BLUE | CREDIT RELAY (N.O.) |
| PIN 8 | PURPLE | CREDIT RELAY (Common) |
202 Wire Color Code
| Color | Function |
|---|---|
| YELLOW | NEUTRAL INHIBIT |
| RED | NEUTRAL ENABLE |
| ORANGE | HOT ENABLE |
| GREEN | Earth - Ground |
| BLUE | CREDIT RELAY (N.O.) |
| PURPLE | CREDIT RELAY (Common) |
