ICT WEL-RM008 Cable

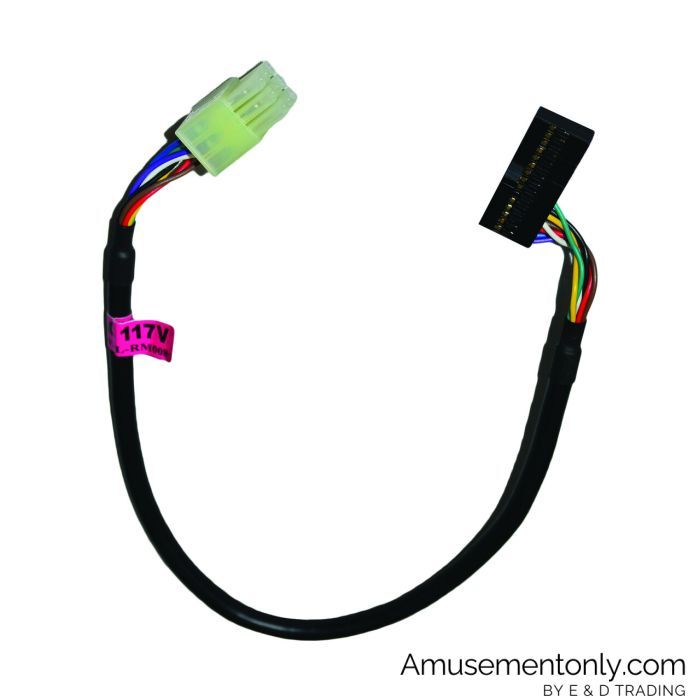

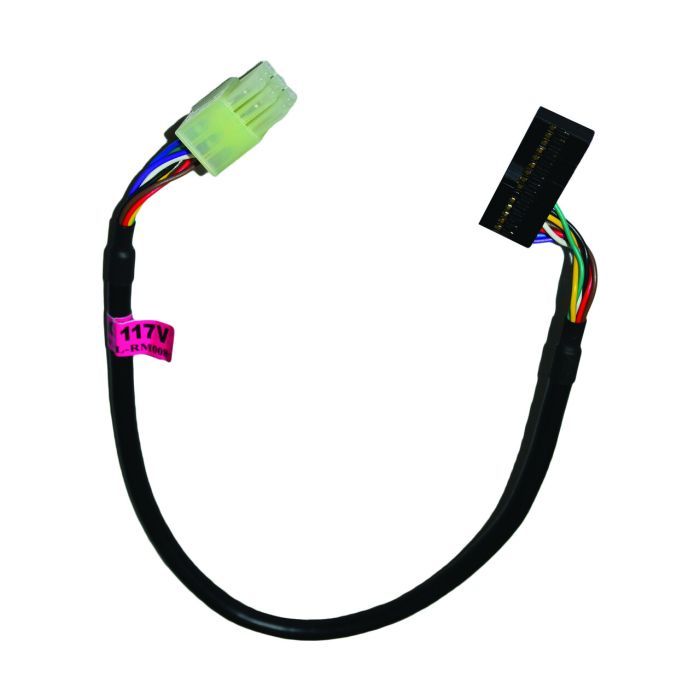

The ICT WEL-RM008 Cable is designed for the AHP 172340-1 interface, supporting STD Pulse and ICT RS232 protocols. Operating on 117V AC, it ensures stable power delivery and reliable data communication for ICT payment and control systems.
$10.95
- SKU
- WEL-RM008
Description / ICT WEL-RM008 Cable
WEL-RM008 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| Pulse | 117V AC | Power & 'Data Comm. |
| RS232 for ICT Protocol | 117V AC | Power |
| USB for ICT Protocol | 117V AC | Power |
WEL-RM008
AAP 173xH
AC 1.17V
Cable: 2464 Z2 AWG 5C CABLE
B.K.HS'3NEYI
Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 1 | Yellow | NEUTRAL INHBIT |
| PIN 2 | Red | NEUTRAL ENABLE |
| PIN 3 | Brown | HOT ENABLE |
| PIN 4 | Black | 117VAC-HOT (Power) |
| PIN 5 | Green | Earth-Central |
| PIN 6 | White | 117VAC-NEUTRAL (Power) |
| PIN 7 | Blue | GREDT_RELAV (NO.) |
| PIN 8 | Purple | GREDT_RELAV (Common) |
Additional Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 1 | Purple | GREDT_RELAV (Common) |
| PIN 3 | Red | NEUTRAL ENABLE |
| PIN 4 | White | 117VAC-NEUTRAL (Power) |
| PIN 5 | Yellow | NEUTRAL INHBIT |
| PIN 16 | Blue | GREDT_RELAV (NO.) |
| PIN 18 | Brown | HOT ENABLE |
| PIN 29 | Black | 117VAC-HOT (Power) |
| PIN 21 | Green | EARTH GROUND |
