ICT WEL-RM007 12v Power Cable
The ICT WEL-RM007 12v Power Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector,…
| SKU | WEL-RM007 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RM007 12v Power Cable
The ICT WEL-RM007 12v Power Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Cable | 2464 22 AWG 8C |
|---|---|
| Connector | BLK-15°Z(NEY) |
| Connector (amp) | 172340-1 |
| Functions | credit relay, inhibit, stable power delivery |
| Protocol (RS232) (ict) | 12V DC; power |
| Pulse (std) | 12V DC; power & data communication |
Works with
- A6E
- PA7
- PA7E
- V7P

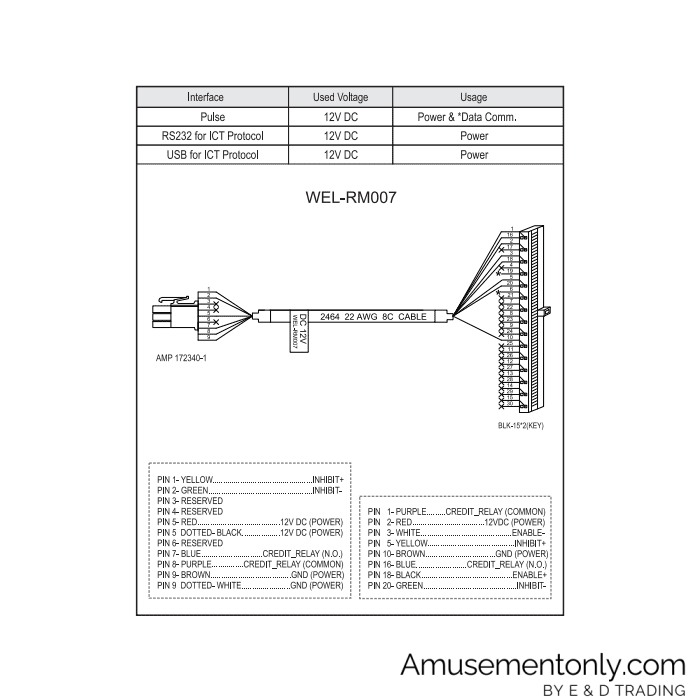

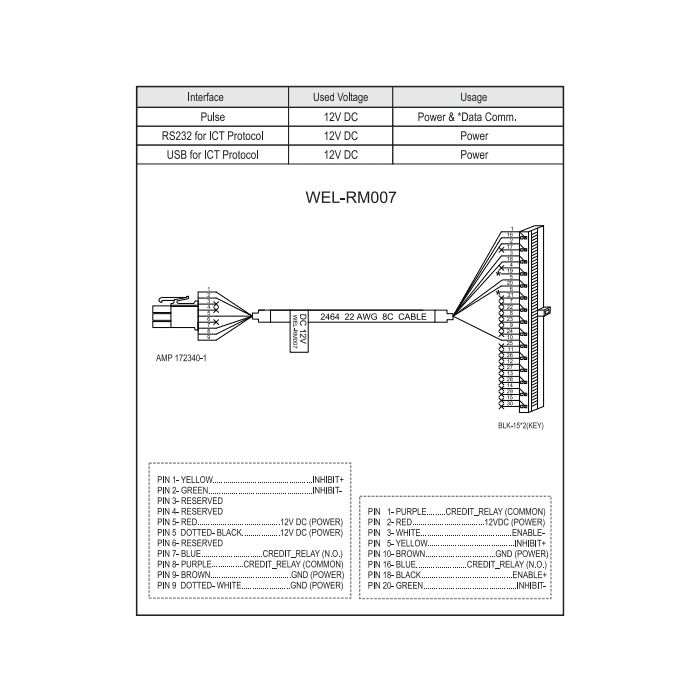

Wire-by-wire: AMP 172340-1 pin assignments
| Signal | Pin | Wire colour |
|---|---|---|
| inhibit+ | 1 | yellow |
| inhibit- | 2 | green |
| reserved | 3 | |
| reserved | 4 | |
| 12V DC power | 5 | red |
| 12V DC power | 6 | dotted-black |
| credit_relay (N.O.) | 7 | blue |
| credit_relay (common) | 8 | purple |
| GND power | 9 | brown |
| GND power | 10 | dotted-white |
Wire-by-wire: Additional pin assignments
| Signal | Pin | Wire colour |
|---|---|---|
| credit_relay (common) | 1 | purple |
| 12VDC power | 2 | red |
| enable- | 3 | white |
| inhibit+ | 5 | yellow |
| GND power | 10 | brown |
| credit_relay (N.O.) | 16 | blue |
| enable+ | 18 | black |
| inhibit- | 20 | green |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
