ICT WEL-RM006 Cable
The ICT WEL-RM006 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RM006 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RM006 Cable
The ICT WEL-RM006 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Works with
- LX7
- S7A
- V6E
- V7P

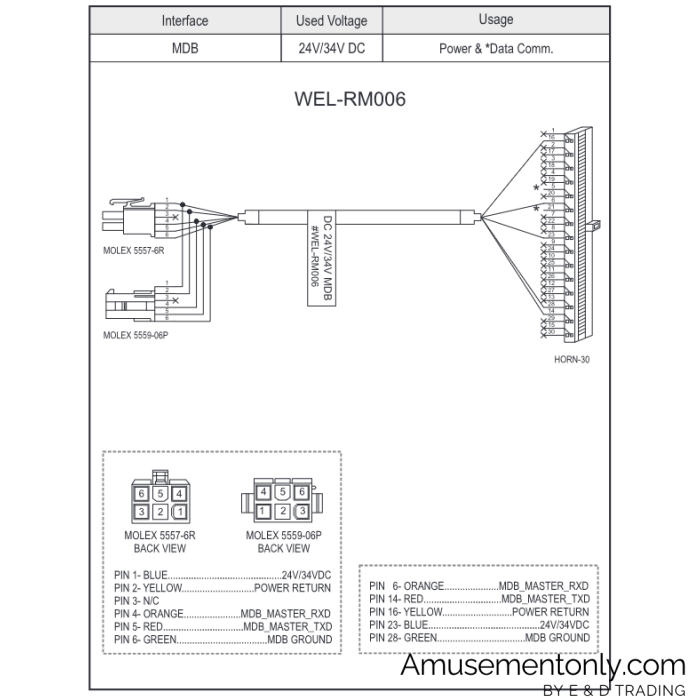

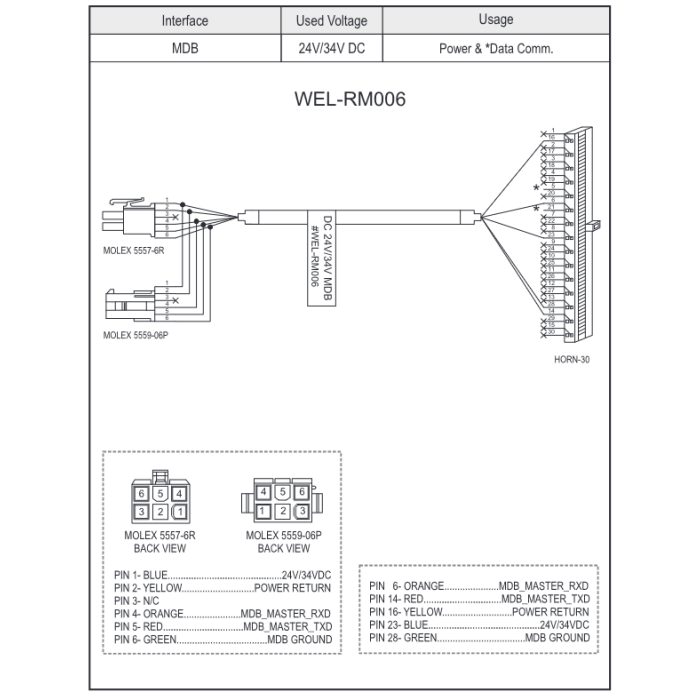

Pinout
| SKU | WEL-RM006 |
|---|---|
| Interface | MDB |
| Voltage | 24V/34V DC |
| Function | Power and data communication |
| Connectors | MOLEX 5557-6R and MOLEX 5559-08P |
Good to know
- Wiring: pin: 1 blue, 24V/34V
- RXD; pin: 14 red, MDB
- TXD; pin: 16 yellow, power
- Return; pin: 23 blue, 24V/34V
- DC; pin: 28 green, MDB
- 30 mapping: pin
- MDB ground.: HORN-30 mapping: pin
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
