ICT WEL-RL705-1 Cable
The ICT WEL-RL705-1 Cable supports RS232 A0 communication with 12V DC power and integrated credit relay functionality. Designed for reliable data transmission and seamless compatibility with ICT bill validators and AMP 172340-1 wiring standards.
$19.95
- SKU
- WEL-RL705-1
Description / ICT WEL-RL705-1 Cable
WEL-RL705-1 RS232 A0 Interface
| Interface | Used Voltage | Usage |
|---|---|---|
| RS232 A0 | 12V DC | Power & Data Communication |

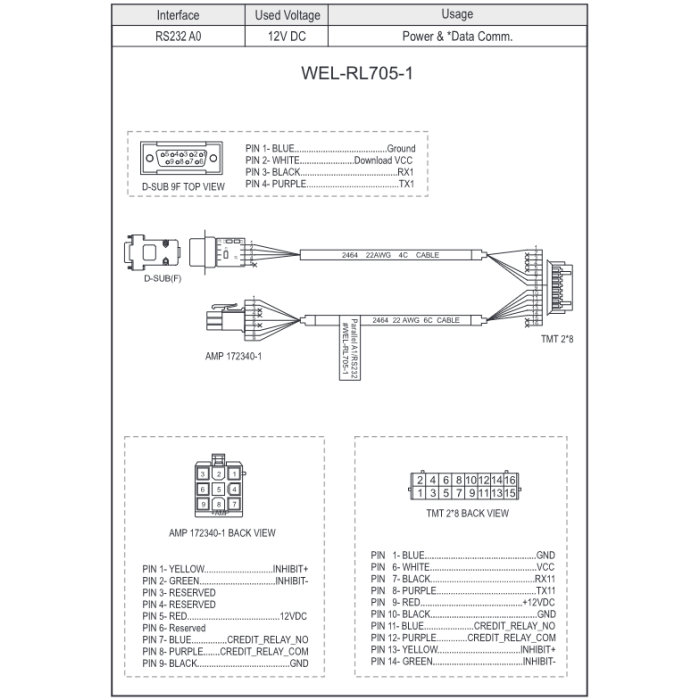

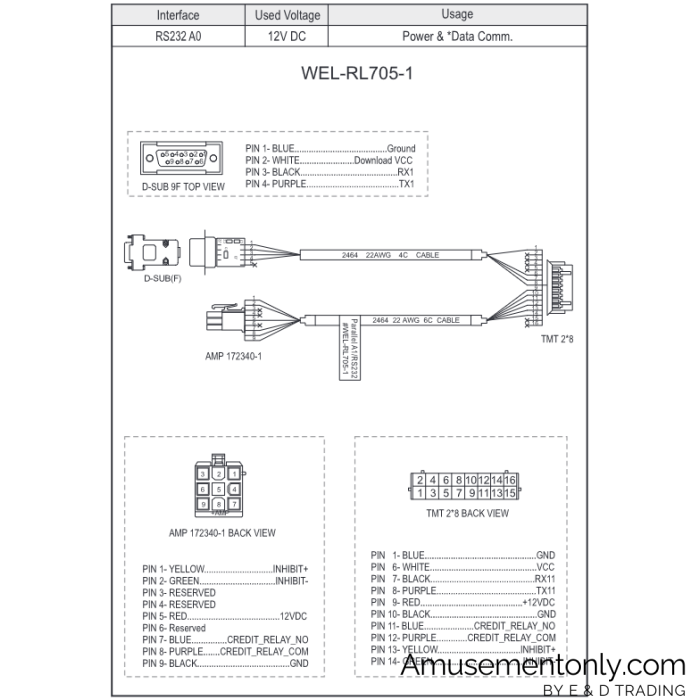

WEL-RL705-1 Pin Configuration
- PIN 1 - BLUE ...... Ground
- PIN 2 - WHITE ...... Download VCC
- PIN 3 - BLACK ...... RX1
- PIN 4 - PURPLE ...... TX1
D-SUB 9F (Top View) Pin Configuration
AMP 172340-1 Pin Configuration
- PIN 1 - YELLOW ...... INHIBIT+
- PIN 2 - GREEN ...... INHIBIT-
- PIN 3 - RESERVED
- PIN 4 - RESERVED
- PIN 5 - RED ...... 12VDC
- PIN 6 - RESERVED
- PIN 7 - BLUE ...... CREDIT_RELAY_NO
- PIN 8 - PURPLE ...... CREDIT_RELAY_COM
- PIN 9 - BLACK ...... GND
