ICT WEL-RL702 Cable
The ICT WEL-RL702 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RL702 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RL702 Cable
The ICT WEL-RL702 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Application | Power & data communication |
|---|---|
| Cable | 2464 22 AWG 6C Cable |
| Connectors | AMP 172340-1 & TMT 2*8 |
| Interface | Pulse |
| Voltage | 12V DC |

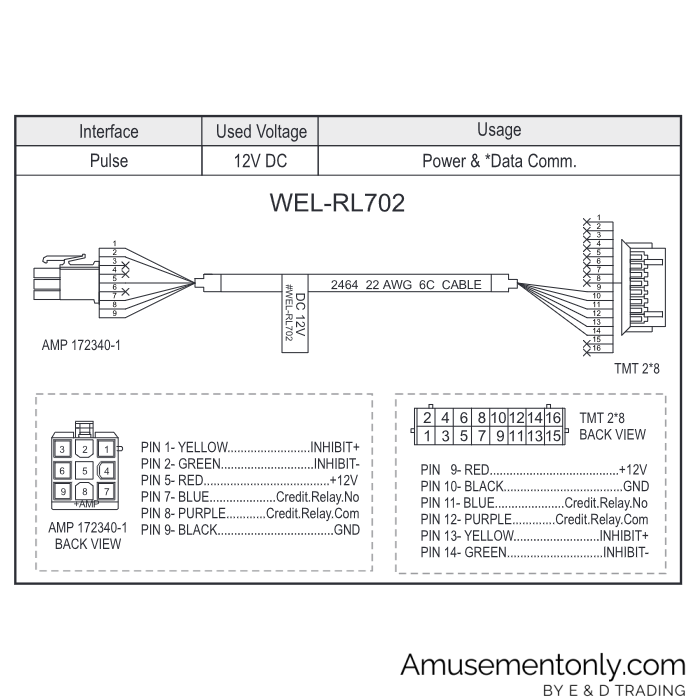

Wire-by-wire: The AMP 172340-1 wiring assigns
| Signal | Pin | Wire colour |
|---|---|---|
| to INHIBIT+ | 1 | yellow |
| to INHIBIT- | 2 | green |
| to +12V | 5 | red |
| to Credit Relay No | 7 | blue |
| to Credit Relay Com | 8 | purple |
Wire-by-wire: Viewed from the back, the TMT 2*8 connector assigns
| Signal | Pin | Wire colour |
|---|---|---|
| to +12V | 9 | red |
| to GND | 10 | black |
| to Credit Relay No | 11 | blue |
| to Credit Relay Com | 12 | purple |
| to INHIBIT+ | 13 | yellow |
| to INHIBIT- | 14 | green |
Good to know
- Fitment includes ICT L70, L70F, L70T, L77F, L77T, and L83 bill acceptor platforms.
