ICT WEL-RL701 Cable
The ICT WEL-RL701 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RL701 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RL701 Cable
The ICT WEL-RL701 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-RL701 |
|---|---|
| Application | Power & data communication |
| Connector | AMP 172340-1 |
| Interface | Parallel A1 |
| Setup | TMT 2*8 standard pin configuration |
| Voltage | 12V DC |

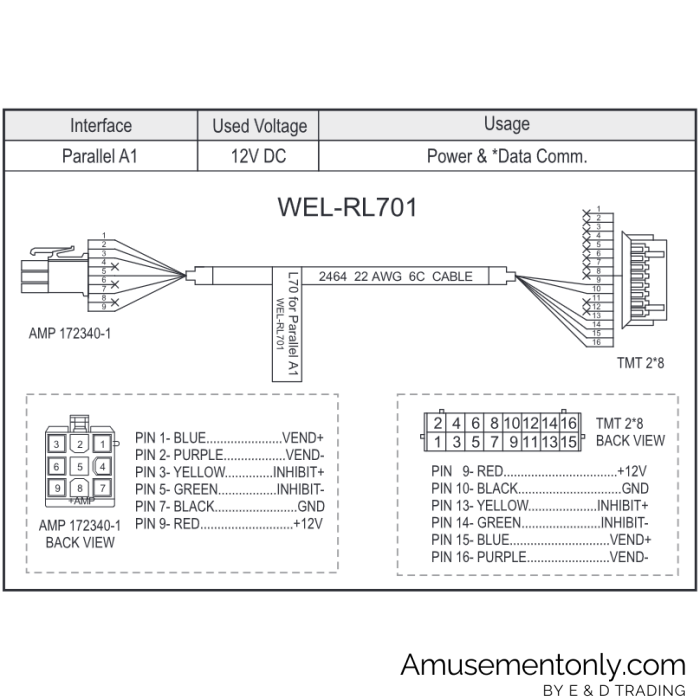

Pinout
| Signal | Pin | Wire |
|---|---|---|
| VEND+ | PIN 1 | BLUE |
| VEND- | PIN 2 | PURPLE |
| INHIBIT+ | PIN 3 | YELLOW |
| INHIBIT- | PIN 5 | GREEN |
| GND | PIN 7 | BLACK |
| +12V | PIN 9 | RED |
| VEND+ | PIN 15 | BLUE |
| VEND- | PIN 16 | PURPLE |
Good to know
- The cable is used with ICT L70, L70F, L70T, L77F, L77T, and L83 bill acceptor models.
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
