ICT WEL-RID04 Cable
The ICT WEL-RID04 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RID04 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RID04 Cable
The ICT WEL-RID04 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| SKU | WEL-RID04 |
|---|---|
| Application | Extension wire for WEL-RL705-1 |
| Connectors | D-SUB 9M & MOLEX 5557-14R |
| Interface | RS232 A0 |
| Voltage | 12 V DC |

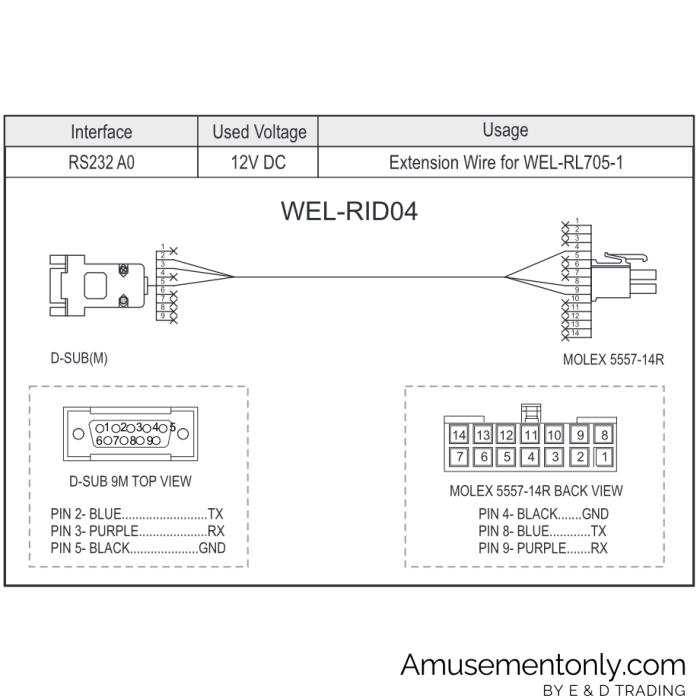

Wire-by-wire: For the D-SUB 9M connector, shown from the top view,
| Signal | Pin | Wire colour |
|---|---|---|
| BLUE | 2 | is |
| PURPLE | 3 | is |
| BLACK | 5 | is |
Wire-by-wire: For the MOLEX 5557-14R connector, shown from the back view,
| Signal | Pin | Wire colour |
|---|---|---|
| BLACK | 4 | is |
| BLUE | 8 | is |
| PURPLE | 9 | is |
Good to know
- 77
- 83 platforms. Double-check
- ICT: L70, L70F
- L70,: L70F, L70T
- L70F,: L70T, L77F
- L70T,: L77F, L77T
- L77T, and: L83 platforms. Double-check
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
