ICT WEL-RGP28 Cable
The ICT WEL-RGP28 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RGP28 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RGP28 Cable
The ICT WEL-RGP28 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it. Settings and firmware can be loaded over USB.
Specifications
| Part no. | WEL-RGP28 |
|---|---|
| Cable | UL2725 28#1P+24#2C+AEB |
| Connections | USB-AM & Micro USB |
| Made by | ICT |
Works with
- SP1

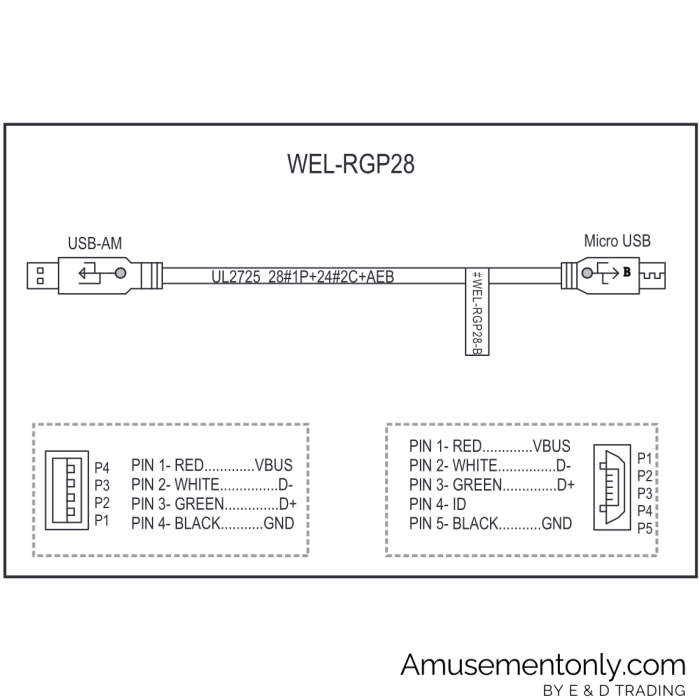

Pinout
| Signal | Pin | Wire |
|---|---|---|
| VBUS | P4 PIN 1 | RED |
| D- | P3 PIN 2 | WHITE |
| D+ | P2 PIN 3 | GREEN |
| GND | P1 PIN 4 | BLACK |
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
