ICT WEL-RGP27 Cable
The ICT WEL-RGP27 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RGP27 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RGP27 Cable
The ICT WEL-RGP27 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.

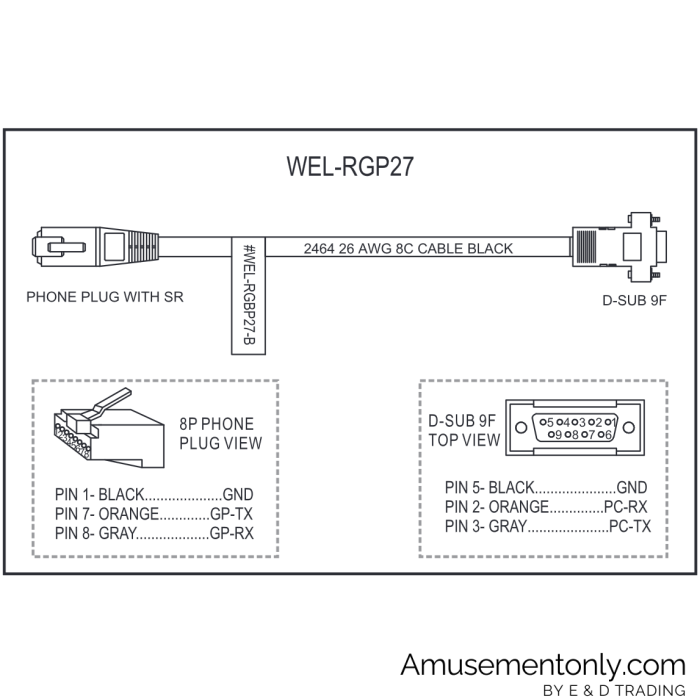

Specifications
| SKU | WEL-RGP27 |
|---|---|
| 9F top view pin 2 (d-sub) | ORANGE — PC-RX |
| 9F top view pin 3 (d-sub) | GRAY — PC-TX |
| 9F top view pin 5 (d-sub) | BLACK — GND |
| Cable | 2464 26 AWG 8C CABLE BLACK |
| Connectors | PHONE PLUG WITH SR & D-SUB 9F |
| Interface | RS-232 / GP-TX/RX lines |
| Phone plug pin 1 (8p) | BLACK — GND |
| Phone plug pin 7 (8p) | ORANGE — GP-TX |
| Phone plug pin 8 (8p) | GRAY — GP-RX |
| Plug assembly (phone) | # WEL-RGBP27-B |
Works with
- SP1
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
