ICT WEL-RGB07 Cable
The ICT WEL-RGB07 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…
| SKU | WEL-RGB07 |
|---|
Secure checkout on billacceptors.us, our official online store. Questions? 877-922-6707
Description / ICT WEL-RGB07 Cable
The ICT WEL-RGB07 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.
What it does
Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.
Specifications
| Cable | 2464 22 AWG, 5-core |
|---|---|
| Connection | MDB box to VMC, plug-in board to VMC |
| Connectors | Molex 5559-06P, Molex 5557-06R, JAM 10P |
| Range (operating) | 20V–42.5V DC; MDB supply is +34V DC |
| Signals | MDB power, ground, RX, TX |
Works with
- TK77

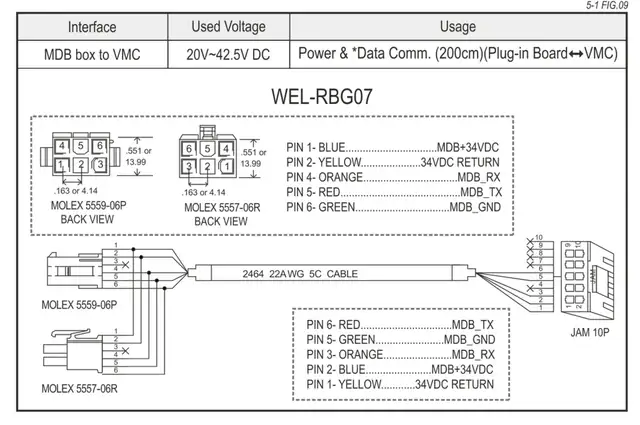

Wire-by-wire: On the Molex 5559-06P / 5557-06R connector,
| Signal | Pin | Wire colour |
|---|---|---|
| is MDB +34V DC | 1 | blue |
| is 34V DC Return | 2 | yellow |
| is MDB RX | 4 | orange |
| is MDB TX | 5 | red |
| is MDB GND | 6 | green |
Wire-by-wire: On the JAM 10P connector,
| Signal | Pin | Wire colour |
|---|---|---|
| is 34V DC Return | 1 | yellow |
| is MDB +34V DC | 2 | blue |
| is MDB RX | 3 | orange |
| is MDB GND | 5 | green |
| is MDB TX | 6 | red |
Good to know
- Is a: 200
- 70
- 83, and: TK77
- Includes ICT: L70
- ICT: L70, L70F
- L70,: L70F, L70T
- L70F,: L70T, L77F
- L70T,: L77F, L77T
- L77F,: L77T, L83
Help from E&D Trading
Not sure this is the right cable? Call 877-922-6707. E&D Trading has more than 30 years of experience and can check fitment against your machine before it ships.
