ICT WEL-RBG08 Cable
Power & Data Comm. (35cm) (Plug-in Board + VMC)
$14.95
- SKU
- WEL-RBG08
Description / ICT WEL-RBG08 Cable
WEL-RBG08 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| MDB | 34V DC | Power & Data Comm. (35cm) (Plug-in Board↔VMC) |

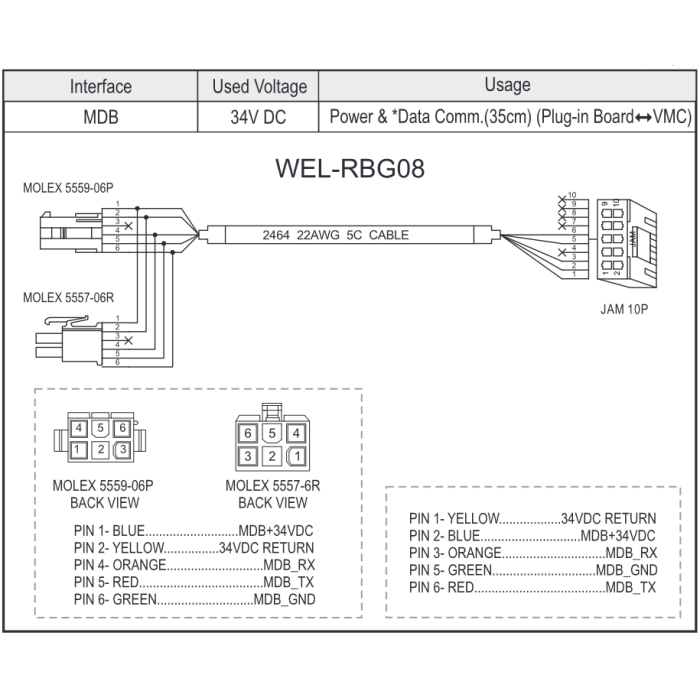

WEL-RBG08 Specifications
Cable: 22 AWG 5C Cable
Connectors: MOLEX 5559-06P, MOLEX 5557-06R, and JAM 10P
MOLEX 5559-06P Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 1 | Blue | MDB+34VDC |
| PIN 2 | Yellow | 34VDC RETURN |
| PIN 4 | Orange | MDB_RX |
| PIN 5 | Red | MDB_TX |
| PIN 6 | Green | MDB_GND |
MOLEX 5557-06R Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PIN 1 | Yellow | 34VDC RETURN |
| PIN 2 | Blue | MDB+34VDC |
| PIN 3 | Orange | MDB_RX |
| PIN 5 | Green | MDB_GND |
| PIN 6 | Red | MDB_TX |
Connector Layout
JAM 10P Layout:
| 4 | 5 | 6 | 1 | 2 | 3 |
Connector Back View
MOLEX 5559-06P and MOLEX 5557-06R Back View:
Refer to the pin configuration tables for detailed connections.
