ICT WEL-RBG07 Cable

The ICT WEL-RBG07 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it. Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and…

$14.95
SKUWEL-RBG07
Call to Place Order Email us

Call 877-922-6707 to order this item.

Description / ICT WEL-RBG07 Cable

The ICT WEL-RBG07 Cable is a ICT wiring part for connecting a bill acceptor, printer or converter board to the machine that controls it.

What it does

Getting the harness right matters: the wrong pinout can leave a validator powered but silent, or stop it from sending credits. Match the connector, voltage and interface below to your machine before you install it.

Key features

  • Cable: 22 AWG 5C Cable
  • MOLEX 5559-06P
  • MOLEX 5557-06R
  • JAM 10P
  • MOLEX 5559-06P plus MOLEX 5557-06R Back View:
  • Refer to the pin configuration tables for detailed connections.

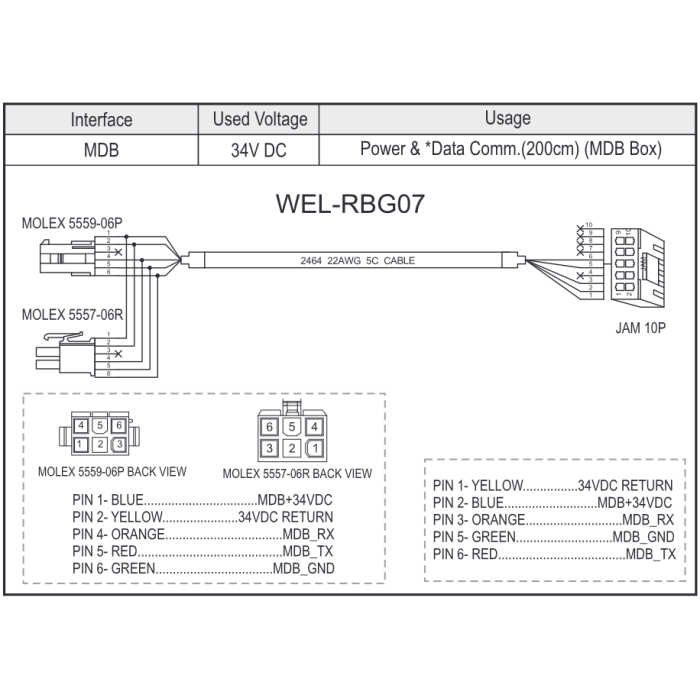

Pinout

InterfaceUsed Voltage / Usage
MDB34V DC / Power & Data Comm. (200cm) (MDB Box)

Pinout

SignalPinWire
MDB +34VDCPIN 1Blue
34VDC RETURNPIN 2Yellow
MDB_RXPIN 4Orange
MDB_TXPIN 5Red
MDB_GNDPIN 6Green

Pinout

SignalPinWire
34VDC RETURNPIN 1Yellow
MDB +34VDCPIN 2Blue
MDB_RXPIN 3Orange
MDB_GNDPIN 5Green
MDB_TXPIN 6Red
