ICT WEL-R7U06-2 Cable
The ICT WEL-R7U06-2 is a 12V DC data-communication cable compatible with RS232, ccNet, and RS232 A0 interfaces, using a D-SUB 9F to TMT 2×4 connector layout.
$17.95
- SKU
- WEL-R7U06-2
Description / ICT WEL-R7U06-2 Cable
WEL-R7U06-2 Interface Details
| Interface | Used Voltage | Usage |
|---|---|---|
| ICT (RS232) | 12V DC | Data Comm. |
| ccNet compatible | 12V DC | Data Comm. |
| RS232 A0 | 12V DC | Data Comm. |

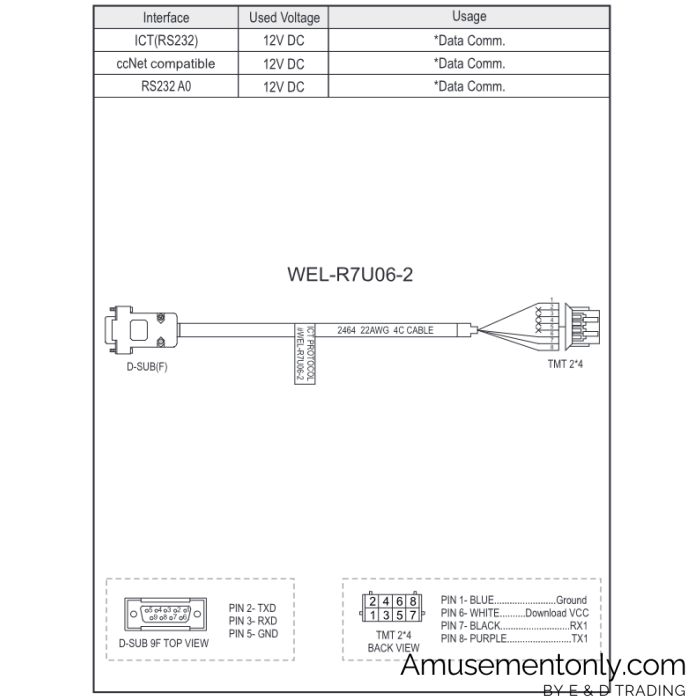

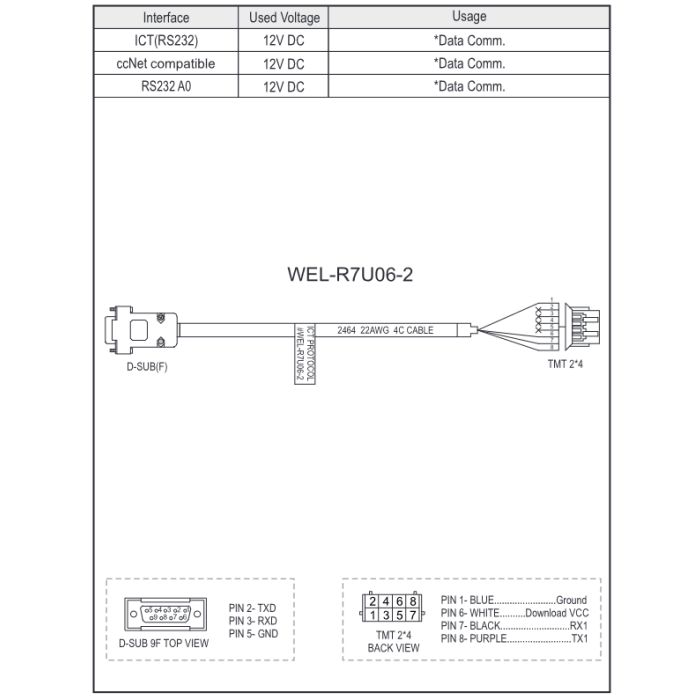

WEL-R7U06-2 Specifications
Cable: 22 AWG 4C Cable
Connectors: D-SUB (F) and TMT 2*4
D-SUB (F) Pin Configuration
| Pin | Function |
|---|---|
| PN2 | TXD |
| PN3 | RXD |
| PN5 | GND |
TMT 2*4 Pin Configuration
| Pin | Color | Function |
|---|---|---|
| PN1 | Blue | Ground |
| PN1 | Black | RX1 |
| PN1 | Purple | TX1 |
Connector Layout
TMT 2*4 Layout:
| 2 | 4 | 6 | 8 |
| 1 | 3 | 5 | 7 |
Connector Back View
D-SUB (F) Back View:
Refer to the pin configuration tables for detailed connections.
